| Order code | 16.082.4 |
| Ports | G1/8" |
| Temperature range | max +50°C |
| Weight | 190 g |
Inlet pressure range
(p1) | 0 ... 10 bar
0 ... 1 MPa |
Outlet pressure range
(p2) | 0.5 ... 8 bar
0.05 ... 0.8 MPa |
Minimum pressure difference
(p1 - p2) | 0.2 bar
0.02 MPa |
Hysteresis
(p1 = 10 bar / p2 = 0 bar) | 1.6 |
Hysteresis
(p1 = 10 bar / p2 = 8 bar) | 0.6 |
Recommended flow rate
(p = 6.3 bar at 25 m/s) | 300 Nl/min |
Maximum flow rate
(p1 = 10 bar; p2 = 6.3 bar; pressure drop 1 bar) | 550 Nl/min |

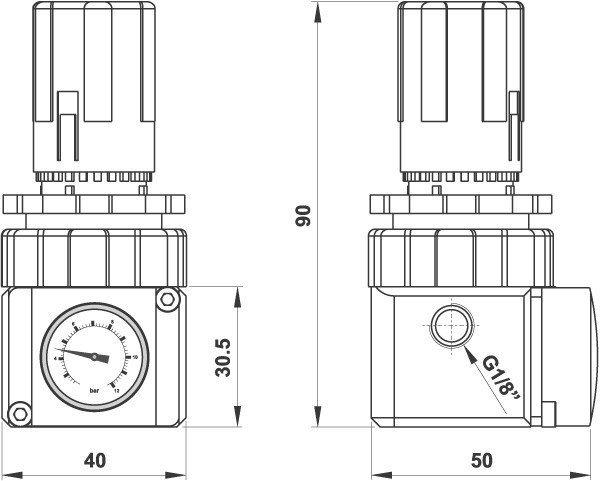

16.082.4
