Explosion proof coils

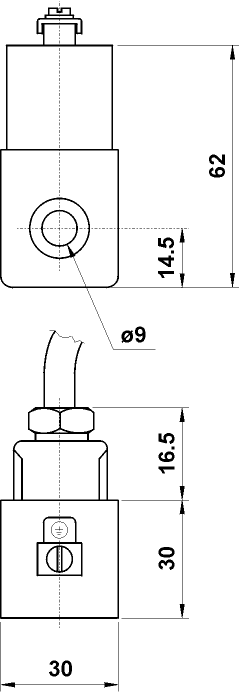

30 mm
- EExm II T5 T4 explosion proof coils according to EN 50014 - EN 50028
- Suitable for potentially explosive environment class II
- With ATEX certification

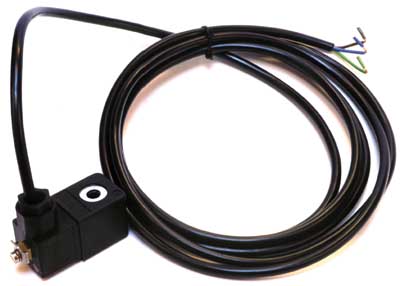

- With 3 or 5 metres cable
Click here to download the ATEX certificate in .pdf format
| Coil code | Tension | Cable length |
| 00.284.0X | 24V DC | 3 m |
| 00.305.0X | 24V DC | 5 m |
| 00.332.0X | 24V 50/60 Hz | 3 m |
| 00.393.0X | 24V 50/60 Hz | 5 m |
| 00.333.0X | 110V 50/60 Hz | 3 m |
| 00.336.0X | 110V 50/60 Hz | 5 m |
| 00.392.0X | 220V 50/60 Hz | 3 m |
| 00.370.0X | 220V 50/60 Hz | 5 m |
- Max working temperature: +50°C
- Duty cycle: ED 100%
- Power consumption: 3W
- Tension tolerance: ±10%
- The ATEX coil must be used only with ATEX products
|

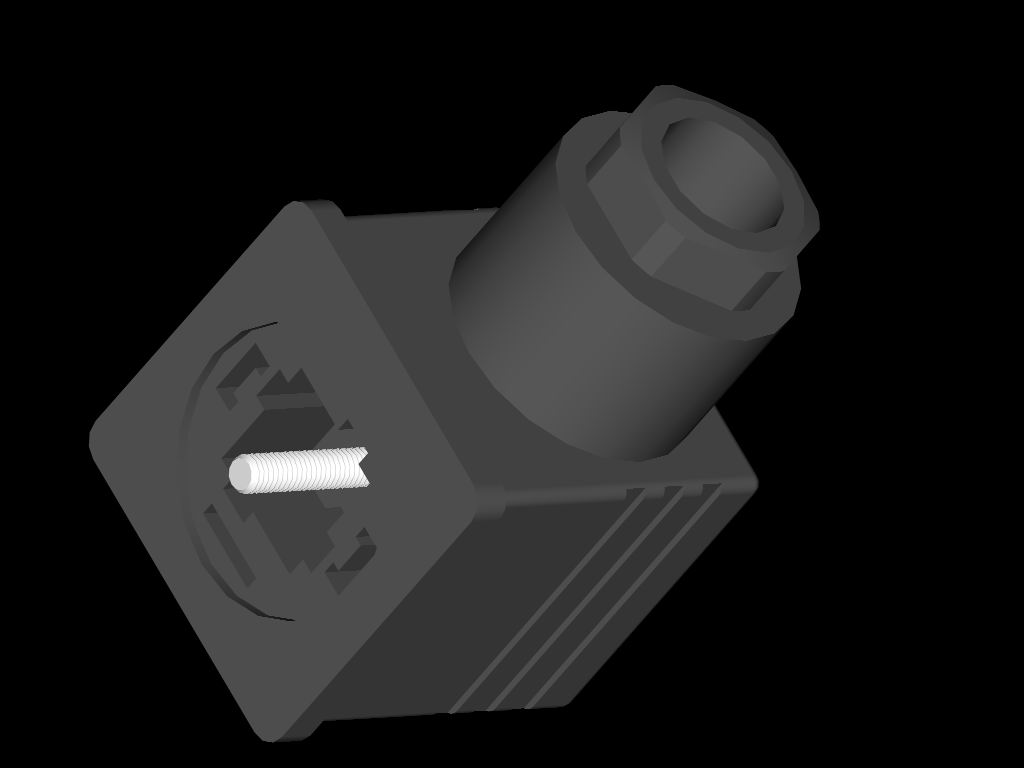

AUTOCAD ver 14. DWG |
JPG |
ACIS - SAT |
STEP |
|
 |
 |
 |
 |
