AZ Pneumatica. CFIL 4-S

CFIL 4-S

symbol

CFIL 4-S

Order code	CFIL 4-S
Ports	G1/2"
Temperature range	max +40°C
Weight	0.6 kg
Working pressure range	0 ... 10 bar 0 ... 1 MPa
Recommended flow rate (p = 6 bar at 25 m/s)	1070 Nl/min
Pressure drop with new filter element	0.1 bar
Pressure drop with saturated filter element	0.3 bar

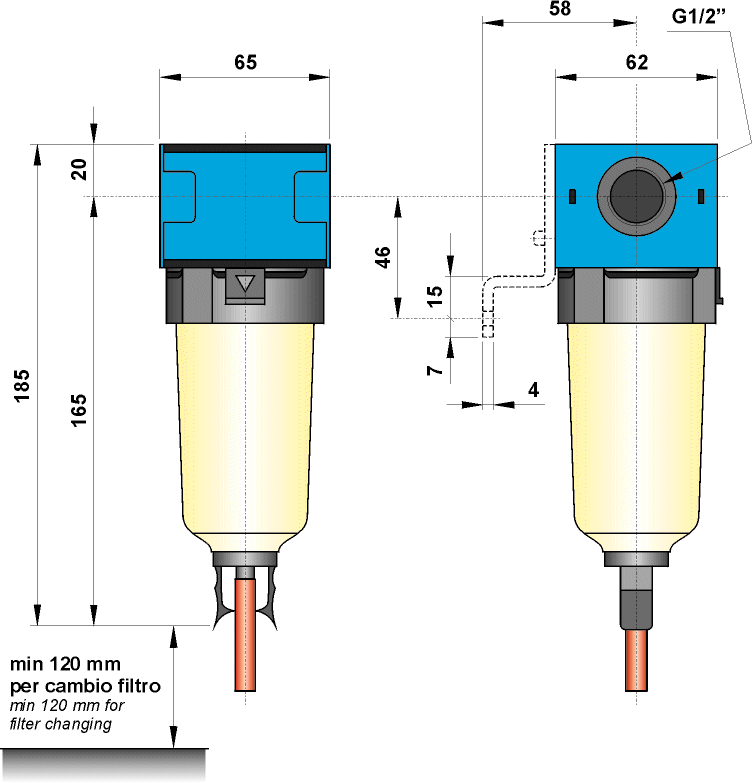

AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP

Materials
