| Order code | CFIL 6N-S |
| Ports | G1" |
| Temperature range | max +40°C |
| Weight | 1.5 kg |
| Working pressure range | 0 ... 12 bar
0 ... 1.2 MPa |
Recommended flow rate
(p = 6 bar at 25 m/s) | 3850 Nl/min |
| Pressure drop with new filter element | 0.1 bar |
| Pressure drop with saturated filter element | 0.3 bar |

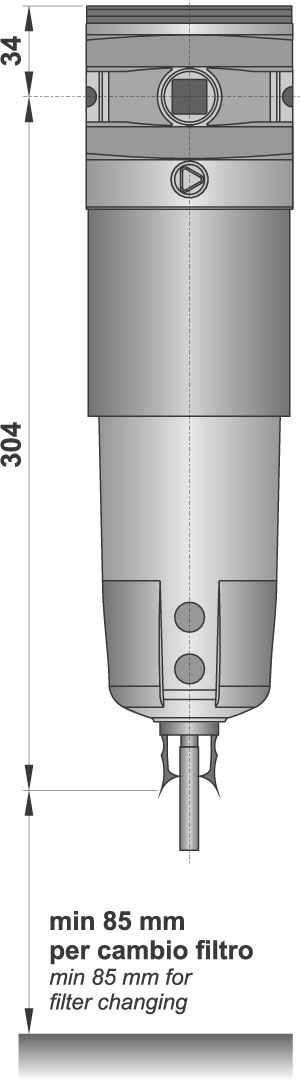

CFIL 6N-S
