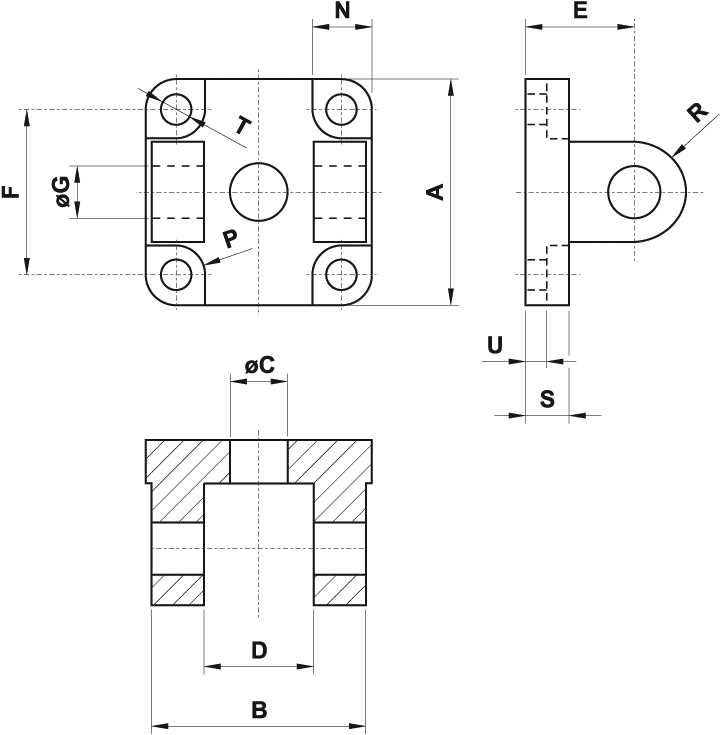

AZ Pneumatica. Female hinge UNITOP with pin

Female hinge UNITOP with pin

cerniera femmina UNITOP con perno

part number
standard part number
with bronze guiding for bore A B C D E F G N P R S T U
CFUN032 CFKN032 32 48 45 14 26 22 32 10 13.5 5.5 10 9 6.6 5.5
CFUN040 CFKN040 40 58 52 14 28 25 42 12 13.5 5.5 12.5 9 6.6 5.5
CFUN050 CFKN050 50 66 60 18 32 27 50 12 15.5 7.5 12.5 11 9 6.5
CFUN063 CFKN063 63 83 70 18 40 32 62 16 18 7.5 15 11 11 6.5
CFUN080 CFKN080 80 102 90 23 50 36 82 16 19 9 15 13 11 10
CFUN100 CFKN100 100 123 110 28 60 41 103 20 19 9 20 15 11 10

previous page

part number standard	part number with bronze guiding	for bore	A	B	C	D	E	F	G	N	P	R	S	T	U
CFUN032	CFKN032	32	48	45	14	26	22	32	10	13.5	5.5	10	9	6.6	5.5
CFUN040	CFKN040	40	58	52	14	28	25	42	12	13.5	5.5	12.5	9	6.6	5.5
CFUN050	CFKN050	50	66	60	18	32	27	50	12	15.5	7.5	12.5	11	9	6.5
CFUN063	CFKN063	63	83	70	18	40	32	62	16	18	7.5	15	11	11	6.5
CFUN080	CFKN080	80	102	90	23	50	36	82	16	19	9	15	13	11	10
CFUN100	CFKN100	100	123	110	28	60	41	103	20	19	9	20	15	11	10
