This intermediate flange is inserted between two ISO 6431 VDMA cylinders to form an opposite cylinder. It is sold in kit with all necessary pieces for installation

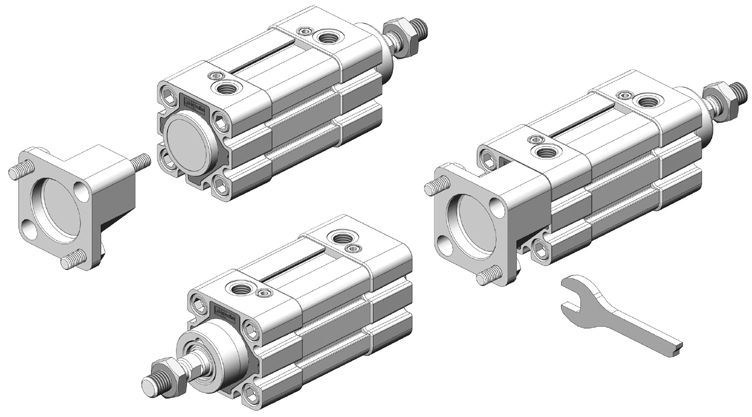

SCHEMA DI ASSEMBLAGGIO - Assembling instructions

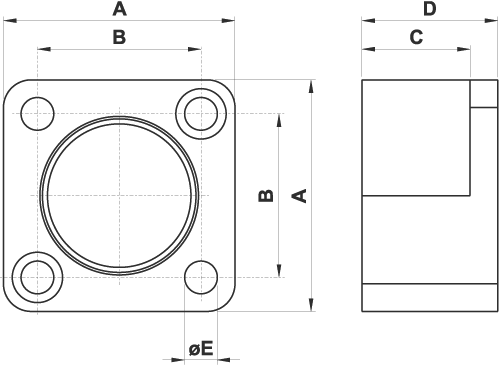

Intermediate flange for opposite ISO 6431 cylinders
Questa flangia intermedia deve essere inserita tra due cilindri ISO 6431 VDMA per formare un cilindro contrapposto. È venduta in kit con tutti i particolari necessari al suo assemblaggio.
This intermediate flange is inserted between two ISO 6431 VDMA cylinders to form an opposite cylinder. It is sold in kit with all necessary pieces for installation
SCHEMA DI ASSEMBLAGGIO - Assembling instructions
| codice code | for bore for bore | A | B | C | D | E |
| 21.190.2 | 32 | 46 | 32.5 | 21.5 | 27 | 6.5 |
| 21.191.2 | 40 | 52 | 38 | 20.5 | 27 | 6.5 |
| 21.192.2 | 50 | 63 | 46.5 | 25.5 | 32 | 8.5 |
| 21.193.2 | 63 | 73 | 56.5 | 21.5 | 28 | 8.5 |
| 21.194.2 | 80 | 92 | 72 | 31 | 38 | 10.5 |
| 21.195.2 | 100 | 110 | 89 | 31 | 38 | 10.5 |
| 21.196.2 | 125 | 134 | 110 | 33 | 44 | 12.5 |
