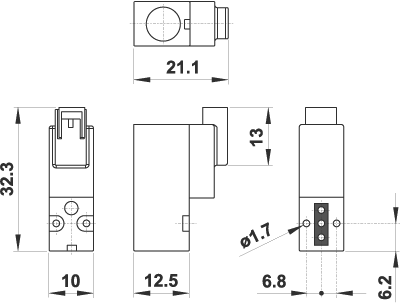

00.441.0

• Valve function: NC
• Nominal flow rate at 6 bar: 15 Nl/min
• Tension: 24V DC ±10%
• Working pressure: max 7 bar
• Temperature range: -5°C ... +50°C
• Power: 0.5 ... 1 W
• Fluid: 5µ filtered, lubricated or non lubricated air

ACCESSORIES
07.049.0 - Connector for 10 mm solenoid with cable red/black, length 400 mm
