AZ Pneumatica. Manifolds for 10 mm solenoid valves

Manifolds
for 10 mm solenoid valves

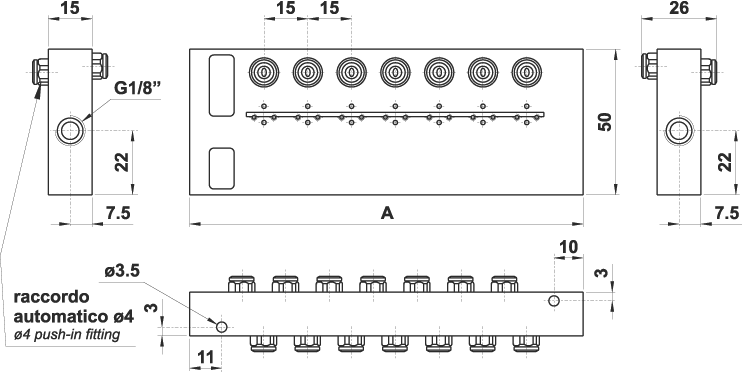

posti fissi 10 mm

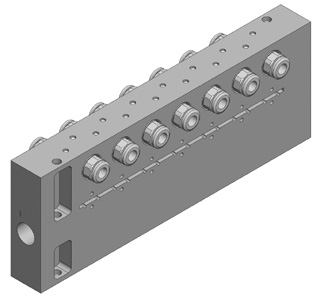

foto

model no. stations A

07.090.2
4
60

07.091.2 6 75

07.092.2 8 90

07.093.2 10 105

07.094.2 12 120

07.095.2 14 135

07.096.2 16 150

07.097.2 18 165

07.098.2 20 180

07.099.2 22 195

07.100.2 24 210

All here mentioned products are sold without solenoids, which are bought separately.

These manifolds can be used independently or mounted in multiconnection systems.
Attention: maximum torque for mounting screws of the solenoid valves: 0.25 Nm

previous page

model	no. stations	A
07.090.2	4	60
07.091.2	6	75
07.092.2	8	90
07.093.2	10	105
07.094.2	12	120
07.095.2	14	135
07.096.2	16	150
07.097.2	18	165
07.098.2	20	180
07.099.2	22	195
07.100.2	24	210
