FIL 6N-30-S
FIL 6N-30-A
FIL 6N-05-S

---

• Cyclone system and filter element
• Moisture separation: 96%
• Semi-automatic or automatic moisture exhaust
• Bowl capacity: 130 cm³
• Vertical installation; mounting brackets on request (code STF 6N)
• Metal bowl

Order code	FIL 6N-30-S	FIL 6N-30-A	FIL 6N-05-S
Ports	G1"	G1"	G1"
Moisture exhaust	semi-automatic	automatic	semi-automatic
Temperature range	max +50°C	max +50°C	max +50°C
Weight	0.9 kg	0.9 kg	0.9 kg
Working pressure range	0 ... 17.5 bar 0 ... 1.75 MPa	0 ... 17.5 bar 0 ... 1.75 MPa	0 ... 17.5 bar 0 ... 1.75 MPa
Maximum flow rate (p = 6.3 bar; pressure drop = 1 bar)	10000 Nl/min	10000 Nl/min	10000 Nl/min
Filter element	30 µm	30 µm	5 µm

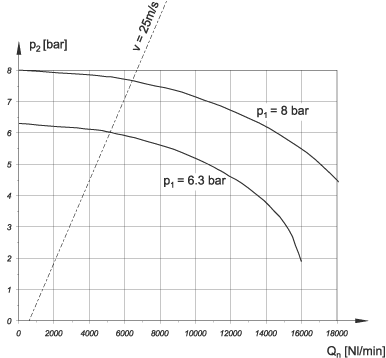

Flow characteristics

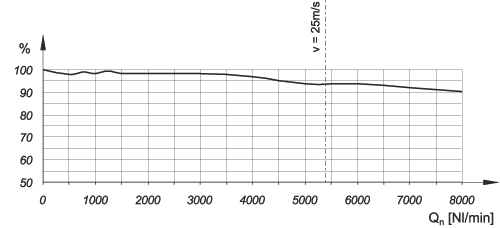

Moisture separation with p1 = 6.3 bar constant




Materials

• Body: die-cast aluminium
• Seals: NBR
• Internal parts: brass and stainless steel
• External parts: reinforced polymer
• Bowl: metal
