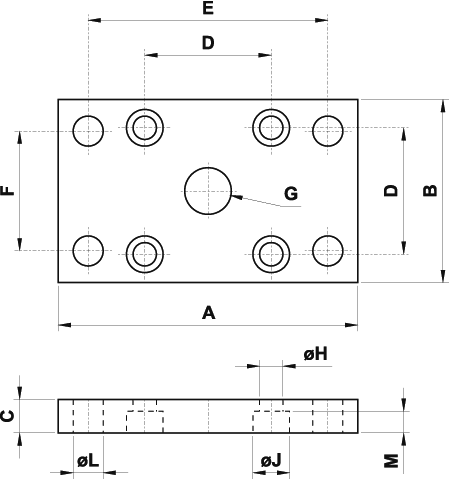

part number	for bore	A	B	C	D	E	F	G	H	J	L	M
FLUN032	32	80	50	10	32	65	32	ø14	6.6	11	7	6.4
FLUN040	40	102	60	10	42	82	36	ø14	6.6	11	9	6.4
FLUN050	50	110	68	12	50	90	45	ø18	9	15	9	8.6
FLUN063	63	130	87	15	62	110	50	ø18	11	15	9	8.6
FLUN080	80	160	107	15	82	135	63	ø23	11	18	12	10.6
FLUN100	100	190	128	15	103	163	75	ø28	11	18	14	10.6
