FR 6N-10-30-S
FR 6N-10-05-S

---

• Cyclone system and filter element, combined with diaphragm-type regulator (with relieving)
• Moisture separation: 96%
• Semi-automatic moisture exhaust; automatic on request
• Bowl capacity: 130 cm³; metal bowl
• Vertical installation; mounting brackets on request (code STF 6N; STF 6NA; STF 6NB)

Order code	FR 6N-10-30-S	FR 6N-10-05-S
Ports	G1"	G1"
Temperature range	max +50°C	max +50°C
Weight	1.5 kg	1.5 kg
Inlet pressure range (p1)	0 ... 17.5 bar 0 ... 1.75 MPa	0 ... 17.5 bar 0 ... 1.75 MPa
Outlet pressure range (p2)	0.5 ... 12 bar 0.05 ... 1.2 MPa	0.5 ... 12 bar 0.05 ... 1.2 MPa
Maximum flow rate (p1 = 10 bar; p2 = 6.3 bar; pressure drop = 1 bar)	19000 Nl/min	19000 Nl/min
Filter element	30 µm	5 µm

Flow characteristics

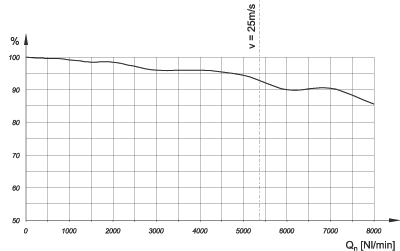

Moisture separation with p1 = 6.3 bar constant





Materials

• Body: die-cast aluminium
• Seals: NBR
• Internal parts: brass and stainless steel
• External parts: reinforced polymer
• Bowl: metal

Mounting bracket and manometer are bought separately.
