FRL 6N-10-30-S

---

• The unit includes: filter, pressure regulator and oil mist lubricator
• Moisture separation: 96%
• Semi-automatic moisture exhaust; manual oil refilling
• Bowl capacity: 130 cm³ (moisture), 500 cm³ (oil)
• Vertical installation; mounting brackets on request (code STF 6N; STF 6NA; STF 6NB)
• Metal bowl

Order code	FRL 6N-10-30-S
Ports	G1"
Temperature range	max +50°C
Weight	3.3 kg
Inlet pressure range (p1)	0 ... 17.5 bar 0 ... 1.75 MPa
Outlet pressure range (p2)	0.5 ... 12 bar 0.05 ... 1.2 MPa
Maximum flow rate (p1 = 10 bar; p2 = 6.3 bar; pressure drop = 1 bar)	12600 Nl/min
Filter element	30 µm

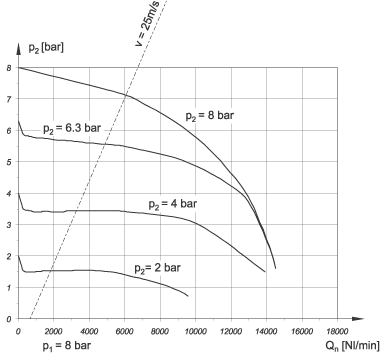

Flow characteristics







Materials

• Body: die-cast aluminium
• Seals: NBR
• Springs: INOX
• Internal parts: brass and stainless steel
• External parts: reinforced polymer
• Bowls: metal

Mounting bracket and manometer are bought separately.
