LUB 6N-00

---

• Oil mist lubricator with flow compensation
• Number of drops per minute is constant
• Bowl capacity: 500 cm³
• Manual oil refilling
• Vertical installation; mounting brackets on request (code STF 6N)
• Metal bowl

Order code	LUB 6N-00
Ports	G1"
Temperature range	max +50°C
Weight	0.8 kg
Working pressure range	0 ... 17.5 bar 0 ... 1.75 MPa
Maximum flow rate (p = 6.3 bar; pressure drop = 1 bar)	17700 Nl/min

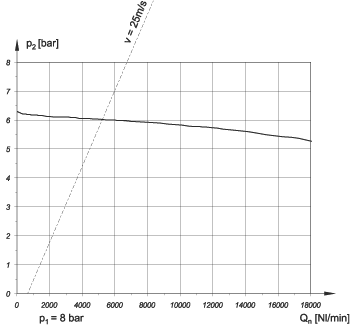

Flow characteristics







Materials

• Body: die-cast aluminium
• Seals: NBR
• Internal parts: brass and stainless steel
• External parts: reinforced polymer
• Bowl: metal
