AZ Pneumatica. MFIL 2-S

MFIL 2-S

symbol

MFIL 2-S

Cyclone system and special filter element
Moisture separation: 99.999%
Residual oil: 0.01 mg/mł (input concentration: 3 mg/mł)
Manual moisture exhaust
Bowl capacity: 12 cmł
Metal bowl protection on request (code PR 2-00)
Vertical installation

Order code	MFIL 2-S
Ports	G1/4"
Temperature range	max +50°C
Weight	0.1 kg
Working pressure range	0 ... 10 bar 0 ... 1 MPa
Recommended flow rate (p = 6 bar at 25 m/s)	350 Nl/min
Pressure drop with new filter element	0.1 bar
Pressure drop with saturated filter element	0.3 bar

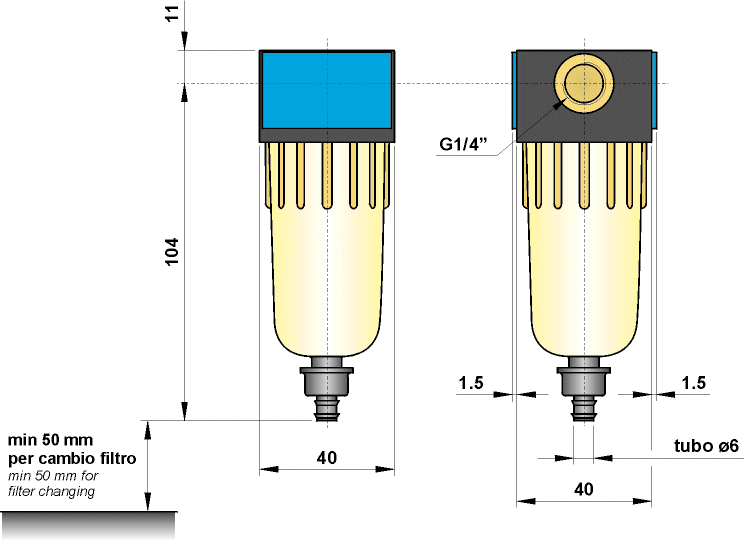

AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP

Materials

Body: reinforced polymer with brass thread inserts
Seals: NBR
Internal parts: brass, stainless steel and polymer
External parts: reinforced polymer
Bowl: reinforced polycarbonate
