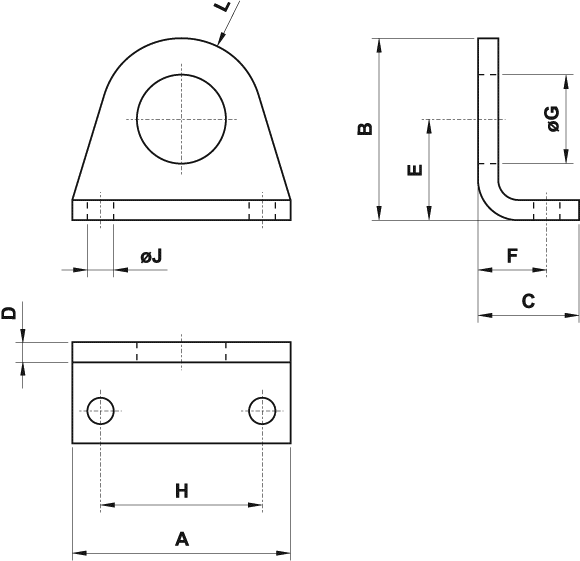

Foot mounting for minicylinders ISO 6432
part number*
for bore
A
B
C
D
E
F
G
H
J
L
PDMC08-10
8-10
35
26
16
3
16
11
12
25
4.5
10
PDMC12-16
12-16
42
32.5
20
4
20
14
16
32
5.5
12.5
PDMC20-25
20-25
54
45
25
5
25
17
22
40
6.6
20
*
La sigla si riferisce a un solo piedino e non alla coppia.
The part number is referred to only one element and not to the couple
