Pressure switches

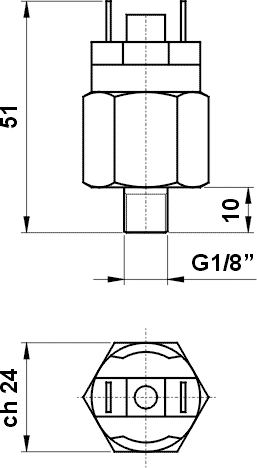

	NC 17.005.0 NO 17.004.0 technical data Temperature range: max +60°C Setting range: 1 ... 10 bar Tolerance at 20°C: 0.5 bar Max. tension: 48V AC Fluid: 50µ filtered, lubricated or non lubricated air Materials Body: brass OT58 Diaphragm: rubber FKM Electrical contacts: silver plated

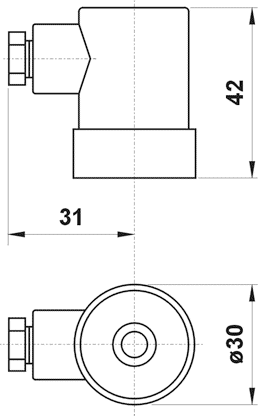

cap IP 65	IP 65 17.007.0

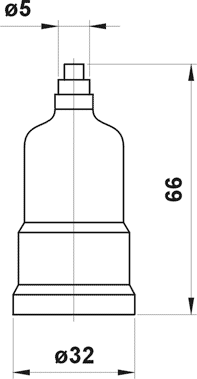

cap IP 54	IP 54 17.008.0

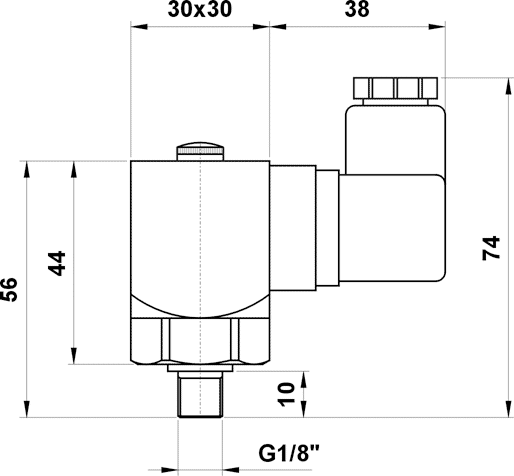

17.006.0 NC-NO technical data Temperature range: max +60°C Setting range: 1 ... 10 bar Tolerance at 20°C: 0.2 bar Max. tension: 250V AC Protection: IP 65 Fluid: 50µ filtered, lubricated or non lubricated air The product is sold with connector. Materials Body: aluminium and iron AVP Diaphragm: rubber FKM Electrical box: aluminium (anodize treatment)

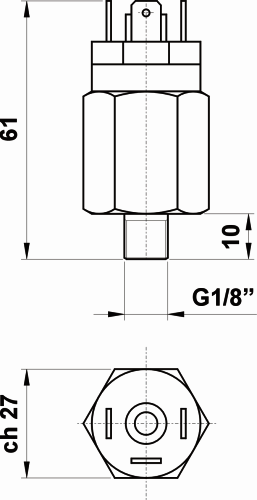

	17.011.0 NC-NO technical data Temperature range: max +60°C Setting range: 1 ... 10 bar Tolerance at 20°C: 0.5 bar Max. tension: 250V AC Standard hysteresis: 10% The hysteresis can be adjusted, max 30% Fluid: 50µ filtered, lubricated or non lubricated air Materials Body: brass OT58 Diaphragm: rubber FKM Electrical contacts: silver plated

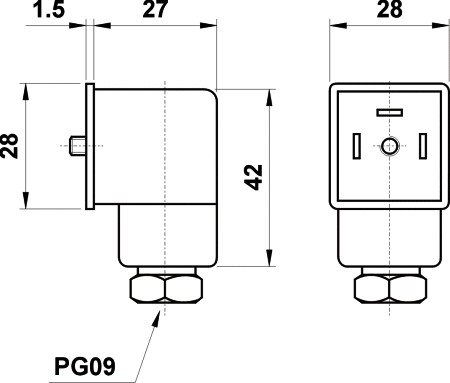

cap IP 65	IP 65 17.012.0 To be used with pressure switch 17.011.0

	VACUUM SWITCHES NC 17.010.0 NO 17.009.0 technical data Temperature range: max +60°C Setting range: -0.2 ... -0.9 bar Tolerance at 20°C: 0.1 bar Max. tension: 48V AC Fluid: 50µ filtered, lubricated or non lubricated air Materials Body: brass OT58 Diaphragm: rubber FKM Electrical contacts: silver plated
cap IP 65	IP 65 17.007.0
cap IP 54	IP 54 17.008.0
