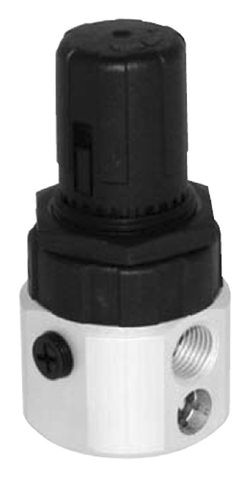

Mini pressure regulator with by-pass
16.070.4
16.071.4

---

• Piston-type pressure regulator
• With non-return valve to by-pass the regulator in direction from 2 to 1
• Body in aluminium 11S
• Sensitive regulation
• In-line or panel mounting

Order code	16.070.4	16.071.4
Ports	G1/4"	G1/4"
Temperature range	max +50°C	max +50°C
Inlet pressure range (p1)	0 ... 10 bar 0 ... 1 MPa	0 ... 10 bar 0 ... 1 MPa
Outlet pressure range (p2)	0.5 ... 8 bar 0.05 ... 0.8 MPa	0.2 ... 1 bar 0.02 ... 0.1 MPa
Minimum pressure difference (p1 - p2)	0.2 bar 0.02 MPa	0.2 bar 0.02 MPa
Hysteresis (p1 = 10 bar / p2 = 0 bar)	1.6	1.6
Hysteresis (p1 = 10 bar / p2 = 8 bar)	0.6	0.6
Recommended flow rate (p = 6.3 bar at 25 m/s)	550 Nl/min	550 Nl/min
Flow rate in direction 2-->1	180 Nl/min	180 Nl/min

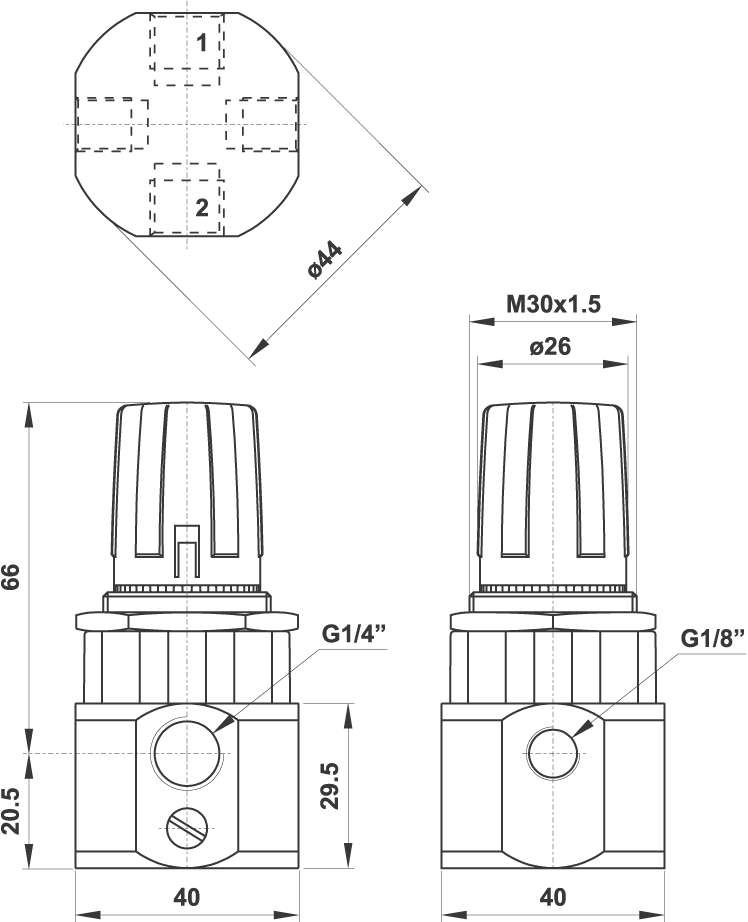

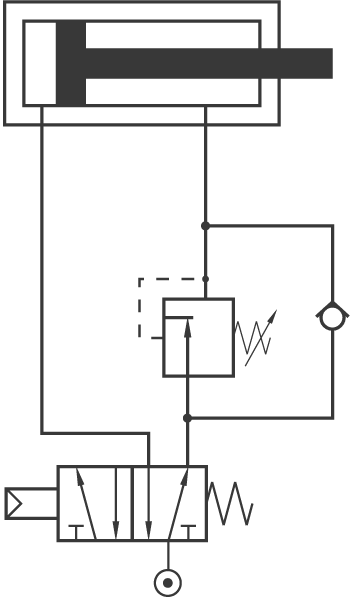

Application sketch






Ideal for use between cylinder and valve


Materials

• Body: aluminium 11S (natural anodize treatment)
• Seals: NBR
• Springs: INOX
• Internal parts: brass, stainless steel and polymer

The manometer is bought separately
