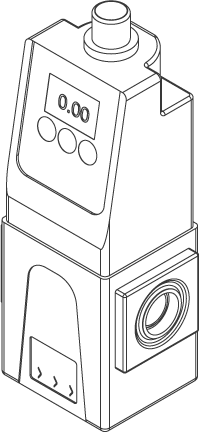

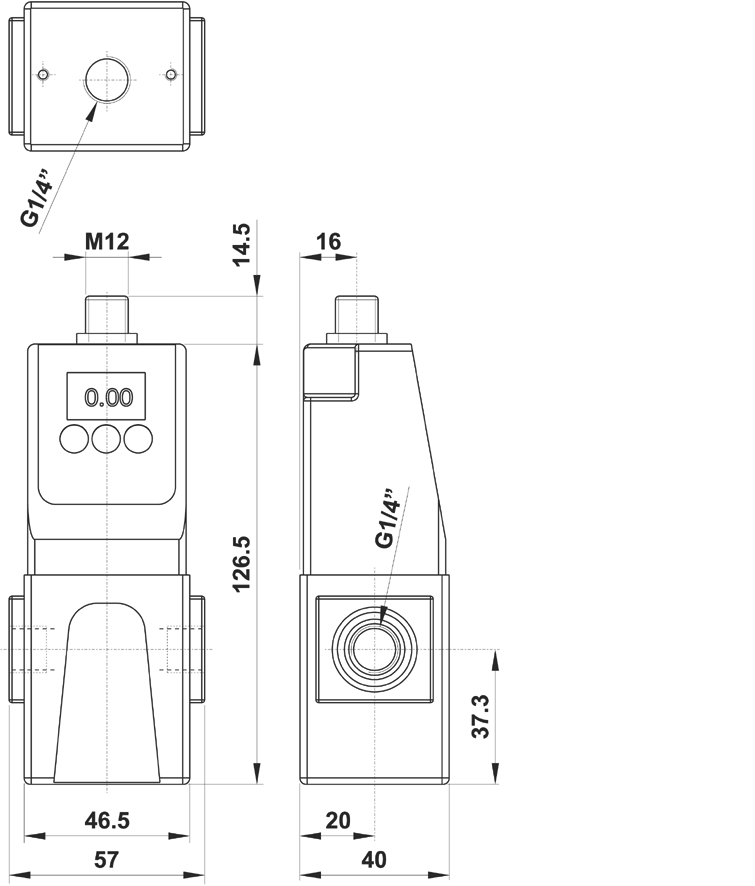

RPE 2V NA

---

• Piston-type pressure regulating valve
• Remote electronic control
• No air consumption in steady conditions
• Display for data viewing and programming
• Vertical installation; mounting bracket on request (see below).

Order code		RPE 2V NA
		normally open
Ports		G1/4"
Temperature range		max +50°C
Weight		290 g
Fluid		40µ filtered, lubricated or non lubricated air
Pneumatic characteristics
Inlet pressure range (p1 >= p2 + 0.1 · p2)	p1 min p1 max	0.5 bar; 0.05 MPa 10.5 bar; 1.05 MPa
Outlet pressure range	p2 min p2 max	0.2 bar; 0.02 MPa 10 bar; 1 MPa
Maximum flow rate (p1 = 10 bar; p2= 6.3 bar)	Qn	1000 Nl/min
Hysteresis	% p2 max	1.3
Linearity	% p2 max	< 0.5
Electrical characteristics
Nominal voltage	Un	24V DC ±10%
Residual ripple		10%
Power		1.1 W
Tension of set value input	Uw	0-10 V
Current intensity of set value input	Iw	4-20 mA
Input resistance	Re	100 kOHM
Electrical protection according to DIN 40050, EN 60529		IP 65

Materials

• Body: aluminium
• Seals: NBR
• Springs: INOX
• Internal parts: aluminium and stainless steel
• External parts: reinforced polymer

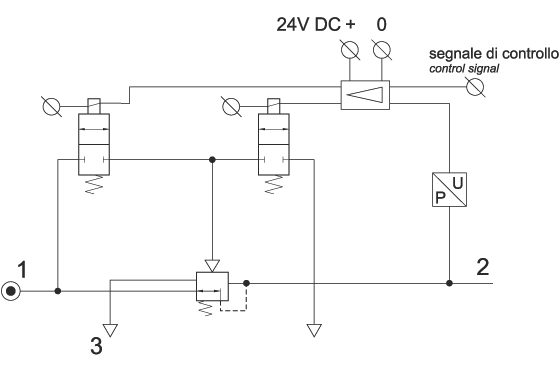

Pneumatic diagram








Connection diagram
connection M12




Pin 1 (brown):
Power supply +24V DC ±10% 0.15 A
Residual ripple 10%

Pin 2 (white):
Set value input: Voltage 0-10V.

Pin 3 (blue):
Power supply 0V

Pin 4 (black):
24V alarm output signal (1kOHM)

The proportional regulator can be electronically controlled by an analogic signal from 0 to 10V. The user can change the parameter by the internal software and display to control the regulator by a signal from 4 to 20 mA (500 OHM).
The inlet pressure range can also be changed by an internal parameter.
As soon as the output pressure is within the signal band a signal is given of 24V DC, PNP Ri = 1 kOHM. Outside the signal band this connection is 0V.

---

Mounting brackets are bought separately
16.176.0: for omega-profile
16.177.0: foot mounting
