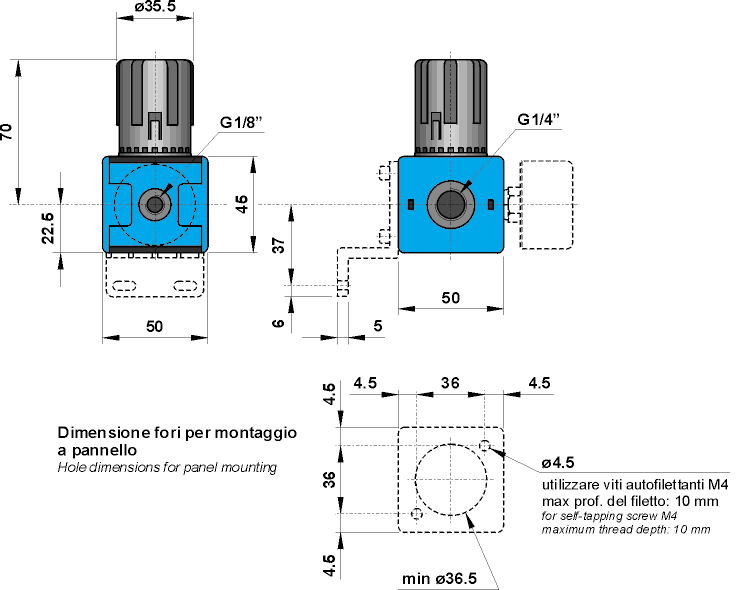

AZ Pneumatica. REG 2-08-SR

REG 2-08-SR

In the shown diagram, the pressure from the cylinder exhaust uses the full cross-section of the valve, allowing the cylinder to travel at full speed. In the opposite direction the air pressure is regulated at a lower level and allows a slower movement.

AUTOCAD ver 14. DWG

JPG

ACIS - SAT

STEP

Diaphragm-type pressure regulator with quick exhaust system
Self-compensated regulation
In-line or panel mounting; bracket on request (code STF 3 or STF 3A)

Order code	REG 2-08-SR
Ports	G1/4"
Temperature range	max +60°C
Weight	0.3 kg
Inlet pressure range (p1)	0 ... 16 bar 0 ... 1.6 MPa
Outlet pressure range (p2)	0.5 ... 8 bar 0.05 ... 0.8 MPa
Minimum pressure difference (p1 - p2)	0.2 bar 0.02 MPa
Hysteresis (p1 = 10 bar / p2 = 0 bar)	0.5
Hysteresis (p1 = 10 bar / p2 = 8 bar)	0.4
Recommended flow rate (p = 6 bar at 25 m/s)	500 Nl/min
Maximum flow rate (p1 = 10 bar; p2 = 6.3 bar; pressure drop = 1 bar)	1000 Nl/min

Flow characteristics

Outlet pressure variation with fluctuating inlet pressure

variazione della pressione di utilizzo

Materials

Body: die-cast aluminium
Seals: NBR
Springs: INOX
Internal parts: brass and stainless steel
External parts: reinforced polymer

Mounting bracket and manometer are bought separately.
