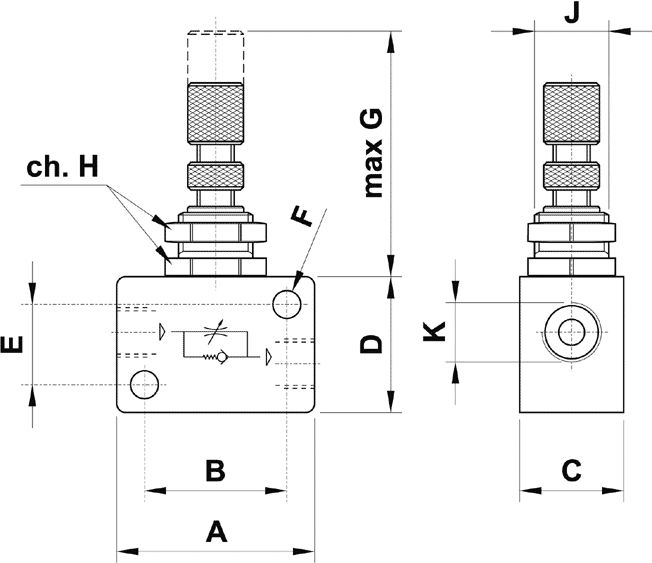

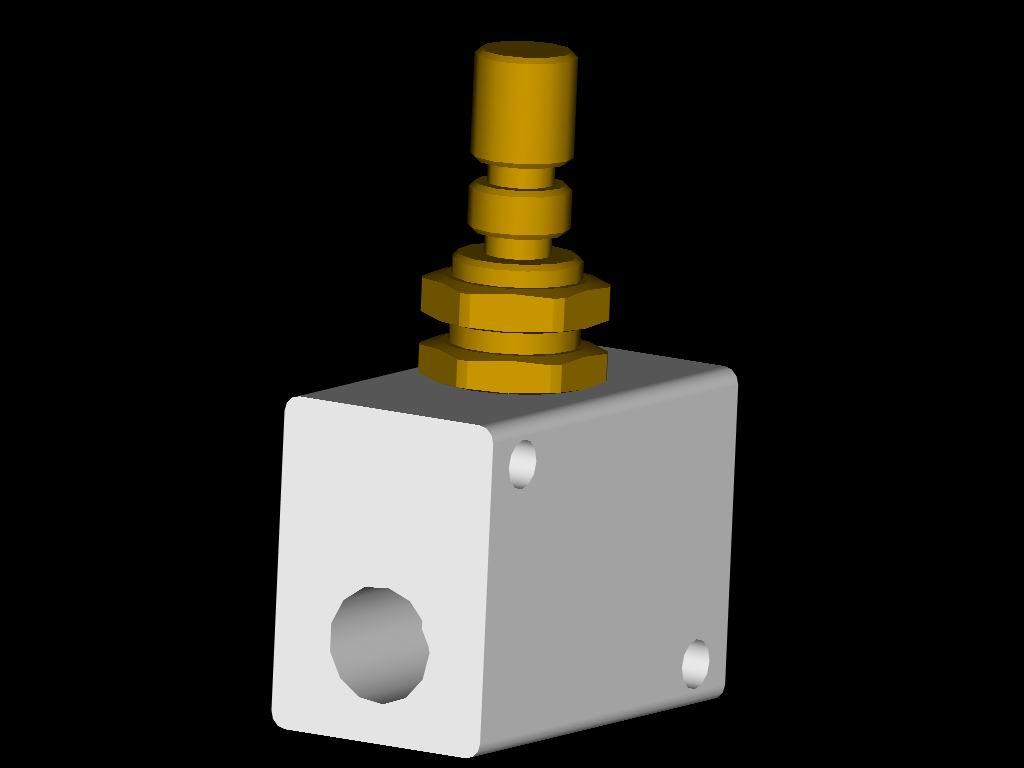

RFU 1/4
| A | 40 |
| B | 30 |
| C | 22 |
| D | 32 |
| E | 22 |
| F | ø4.5 |
| G | 35 |
| H | 15 |
| J | M12x0.75 |
| K | G1/4" |
|
AUTOCAD ver 14. DWG |
JPG |
ACIS - SAT |
STEP |
|
 |
 |
 |
 |
technical data
- Ports: G1/4"
- Nominal orifice (1-2): 3.5 mm
- Nominal orifice (2-1): 6.5 mm
- Nominal flow rate at 6 bar (1-2): 300 Nl/min
- Nominal flow rate at 6 bar (2-1): 600 Nl/min
- Temperature range: max +60°C
- Working pressure: 2 ... 10 bar
- Fluid: 50µ filtered, lubricated or non lubricated air
Materials
- Body: aluminium 11S
- Seals: NBR
- Springs: stainless steel
- Internal parts: brass OT 58

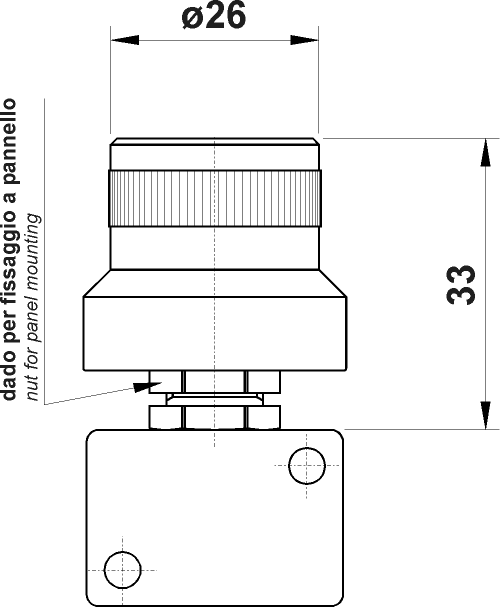

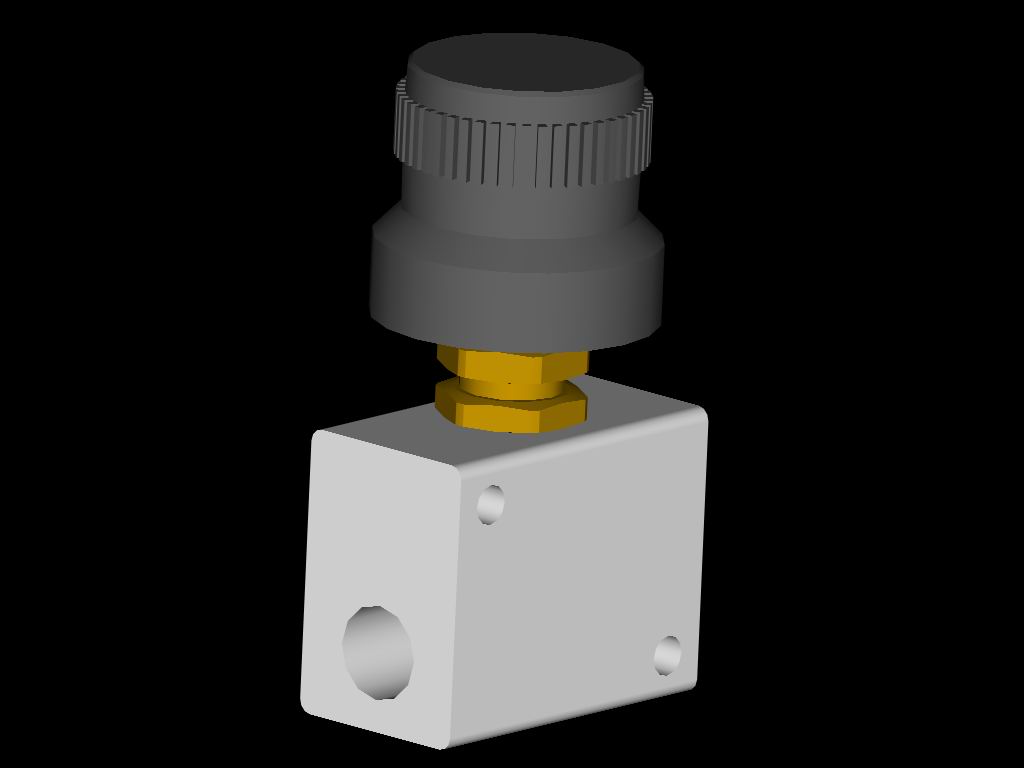

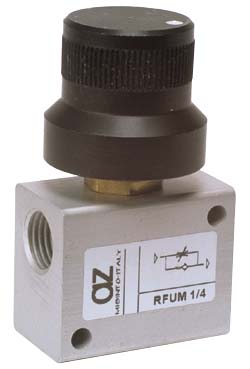

RFUM 1/4
with knob
Two locking nuts are provided to panel mount the regulator.
Once the locking nuts have been tightened adjustment can be made without the risk of body turning.
- Knob material: aluminium (black anodize treatment)
