AVP 6N-01

---

• Pneumatically or solenoid actuated 3/2 G1" valve
• Slow-start valve integrated with quick exhaust valve
• High exhaust flow rate
• Vertical installation; mounting bracket on request (code STF 6N)

Order code	AVP 6N-01
Ports	G1"
Temperature range	max +50°C
Weight	1.5 kg
Working pressure	2 ... 10 bar 0.2 ... 1 MPa
Recommended flow rate (p = 6 bar at 25 m/s)	5500 Nl/min
Maximum flow rate (p = 6.3 bar; pressure drop = 1 bar)	12000 Nl/min

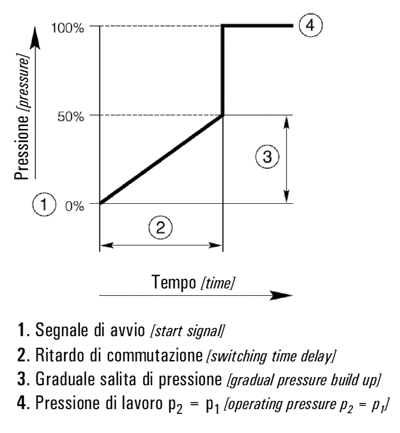

Flow characteristics









Materials

• Body: aluminium
• Seals: NBR
• Internal parts: brass and stainless steel
• External parts: reinforced polymer

The product is sold without coil and without mounting bracket, which are bought separately. The coil must be 30 mm.
