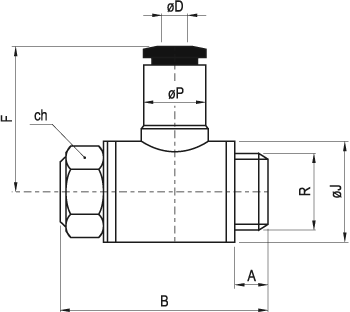

tubo (ЖD) tube трубка	R	ЖP	ЖJ	B	A	ch	F	confez. package упак.	codice code код
4	M5	11	10	17	4	8	20	10	36.1048.0
4	G1/8"	11	14.2	23.5	5	12	21.5	10	36.1049.0
4	G1/4"	11	18.2	28.5	8	14	23.7	10	36.1050.0
6	M5	13	10	17	4	8	20	10	36.1051.0
6	G1/8"	13	14.2	23.5	5	12	22.5	10	36.1052.0
6	G1/4"	13	18.2	28.5	8	14	24.7	10	36.1053.0
6	G3/8"	13	21.8	32.5	8.5	19	27.5	5	36.1054.0
8	G1/8"	14.4	14.2	23.5	5	12	25.3	10	36.1055.0
8	G1/4"	14.4	18.2	28.5	8	14	28.5	10	36.1056.0
8	G3/8"	14.4	21.8	32.5	8.5	19	29.5	5	36.1057.0
8	G1/2"	14.4	28	39	10.5	24	32	5	36.1058.0
10	G1/4"	18.4	18.2	28.5	8	14	32	5	36.1059.0
10	G3/8"	18.4	21.8	32.5	8.5	19	32.5	5	36.1060.0
10	G1/2"	18.4	28	39	10.5	24	35.5	5	36.1061.0
12	G1/4"	21	18.2	28.5	8	14	33.3	5	36.1062.0
12	G3/8"	21	21.8	32.5	8.5	19	35.5	5	36.1063.0
12	G1/2"	21	28	39	10.2	24	36.2	5	36.1064.0

Dati tecnici - Technical data - Технические данные
