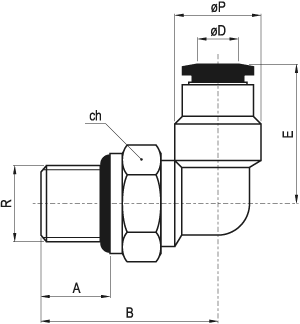

tubo (ЖD) tube трубка	R	ЖP	B	E	A	ch	confez. package упак.	codice code код
4	M5	11	15.3	18.2	4	8	10	36.750.0
4	G1/8"	11	19.1	18.2	5.5	14	10	36.751.0
4	G1/4"	11	19.3	18.2	7	17	10	36.752.0
6	M5	13	20.3	18.7	4	10	10	36.753.0
6	G1/8"	13	20.1	18.7	5.5	14	10	36.754.0
6	G1/4"	13	20.3	18.7	7	17	10	36.755.0
6	G3/8"	13	21.3	18.7	7.5	20	10	36.756.0
8	G1/8"	14.4	20.8	22.2	5.5	14	10	36.757.0
8	G1/4"	14.4	21	22.2	7	17	10	36.758.0
8	G3/8"	14.4	22	22.2	7.5	20	10	36.759.0
8	G1/2"	14.4	25	22.2	10	24	10	36.760.0
10	G1/8"	18.4	25.5	26.2	5.5	14	10	36.761.0
10	G1/4"	18.4	24.9	26.2	7	17	10	36.762.0
10	G3/8"	18.4	24.1	26.2	7.5	20	10	36.763.0
10	G1/2"	18.4	27	26.2	10	24	5	36.764.0
12	G1/4"	21	26.2	29.5	7	17	10	36.765.0
12	G3/8"	21	25.4	29.5	7.5	20	10	36.766.0
12	G1/2"	21	28.3	29.5	10	24	5	36.767.0
16	G1/4"	26	38.5	32.5	7	24	5	36.768.0
16	G3/8"	26	39.5	32.5	7.5	24	5	36.769.0
16	G1/2"	26	42	32.5	10	24	5	36.770.0

Dati tecnici - Technical data - Технические данные
