logo Pedal with 5/2 microvalve, push-in fittings for ø4 tube

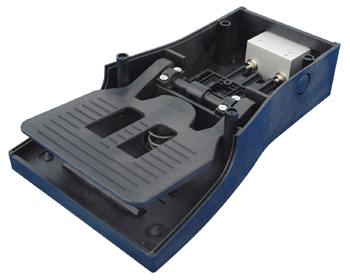

foto chiusa foto aperta

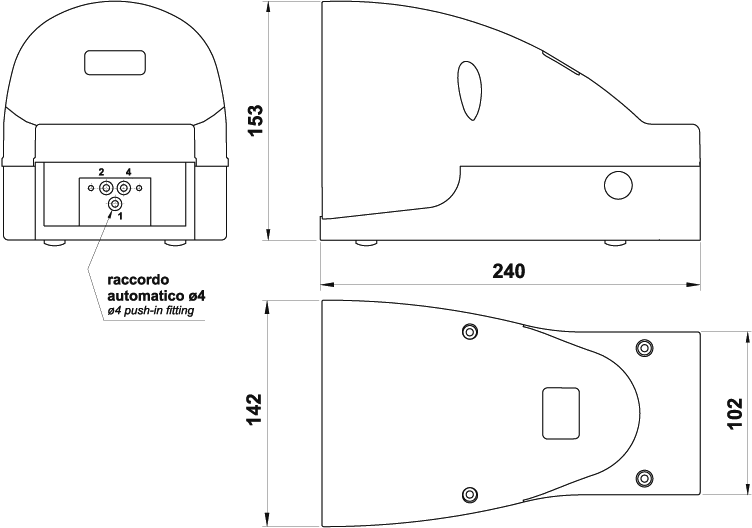

disegno





Cover colour: YELLOW





Code
Part number
Description
Symbol
08.303.4N
PED 504 M
Mono-stable pedal valve 5/2, push-in fittings ø4, with protection cover
symbol
08.304.4N
PED 504 B
Bi-stable pedal valve 5/2, push-in fittings ø4, with protection cover
symbol
08.305.4N
PED 504 S
Mono-stable pedal valve 5/2, push-in fittings ø4, with protection cover and safety feature*
symbol
08.306.4N
PED 504 BS
Bi-stable pedal valve 5/2, push-in fittings ø4, with protection cover and safety feature*
symbol

* Safety feature: to avoid accidental operation the pedal must be fully depressed.


technical data
