Manifolds
 for 1/4" spool valves



posti fissi 1/4



































foto

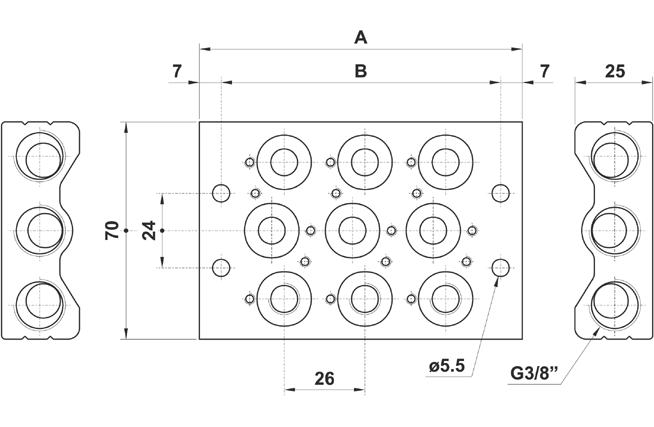

model no. stations A B

AUTOCAD ver 14. DWG

 JPG

ACIS - SAT

 STEP

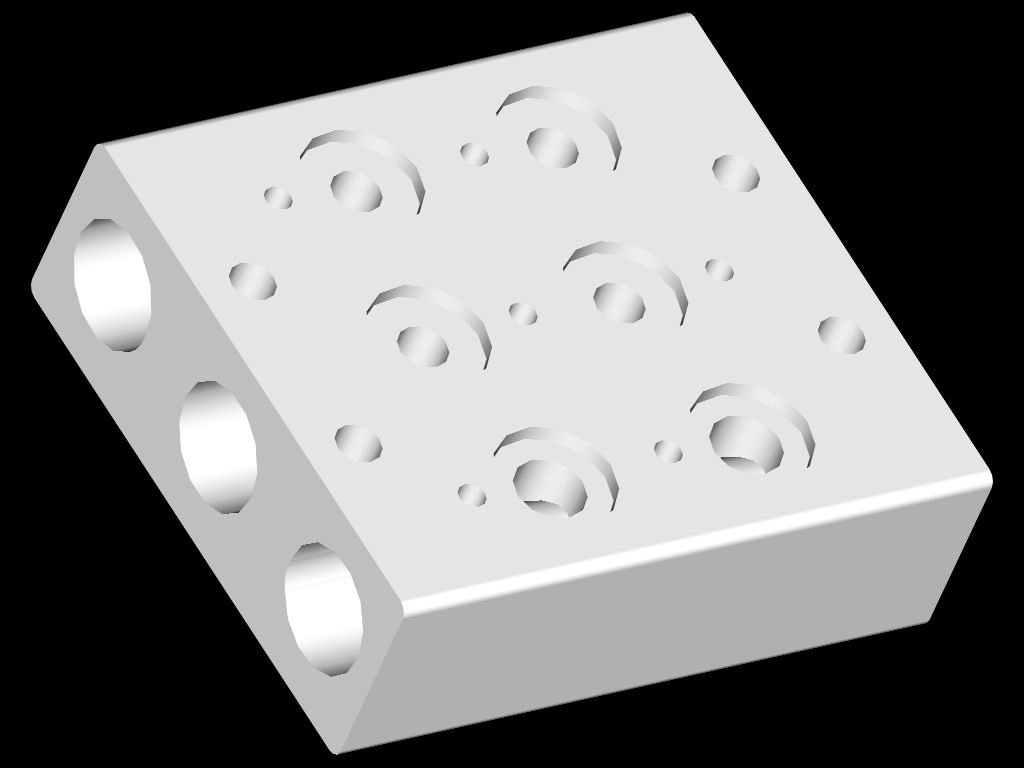

01.042.2

2

 78 64

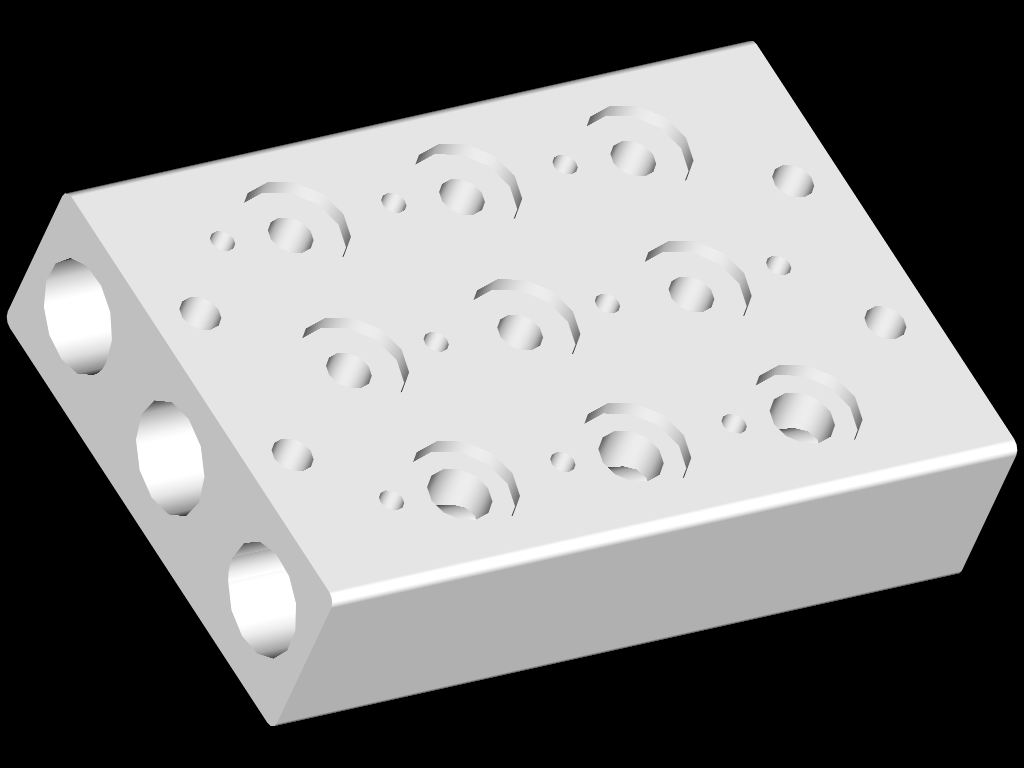

01.043.2 3 104 90

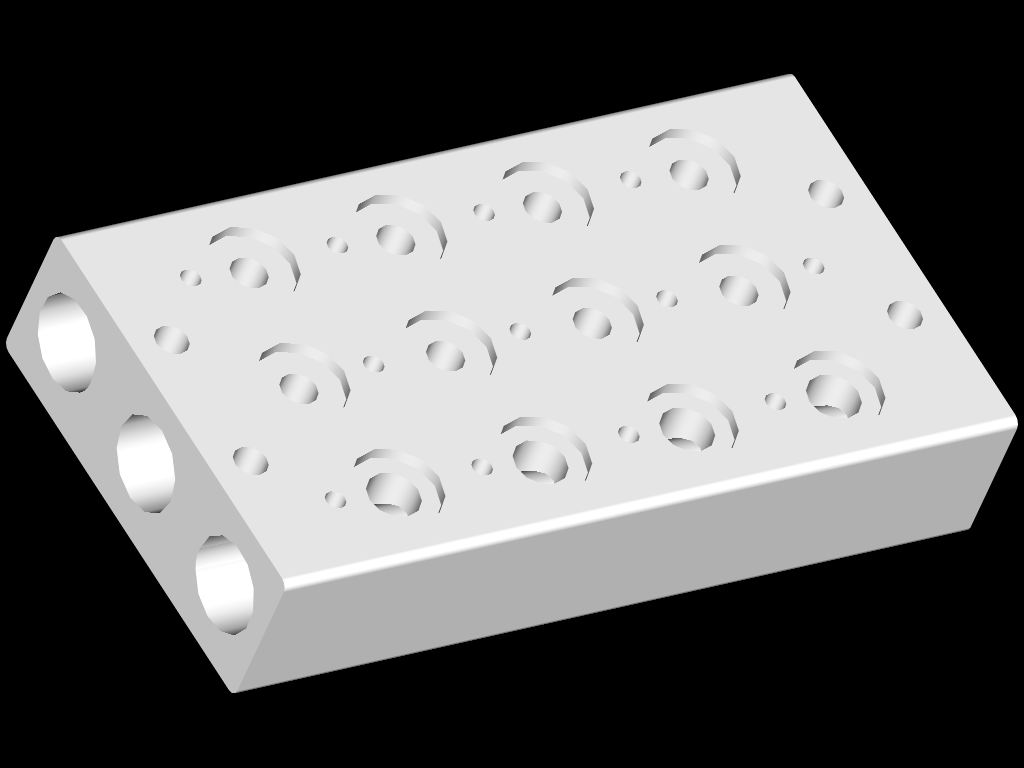

01.044.2 4 130 16

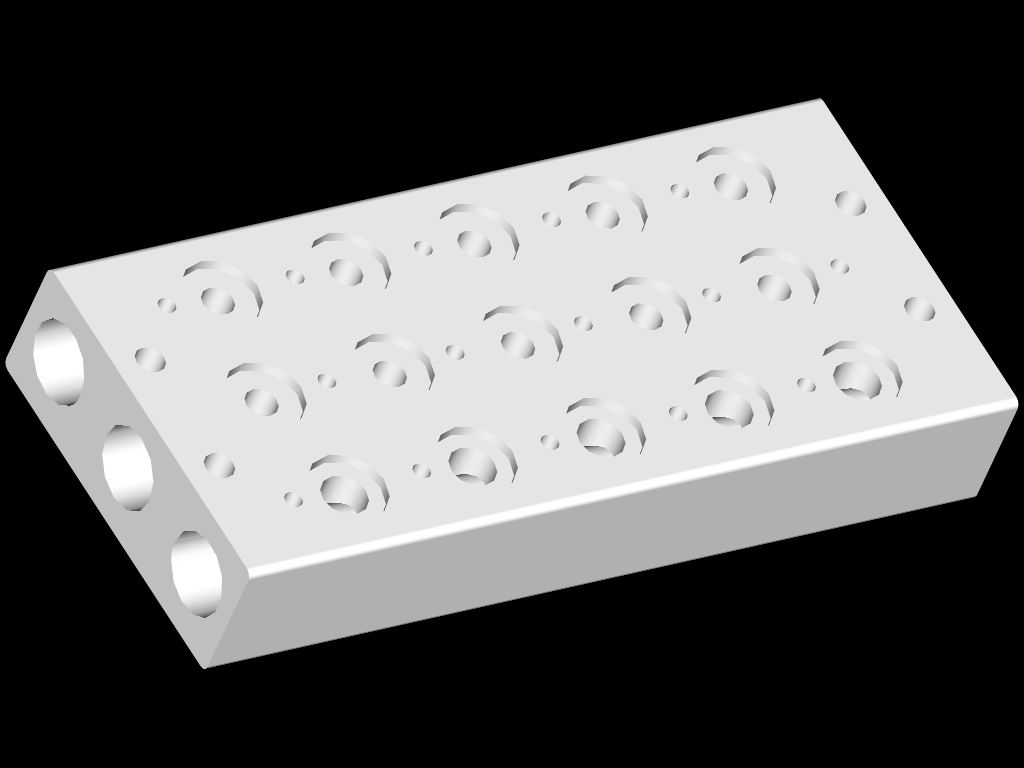

01.045.2 5 156 142

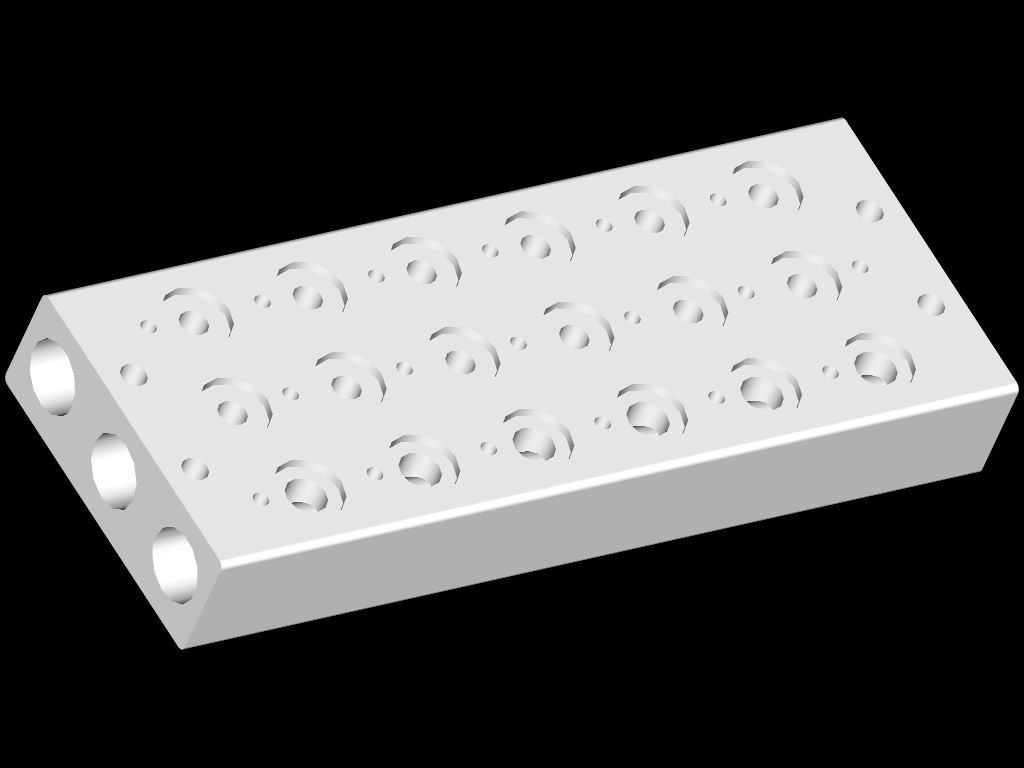

01.046.2 6 182 168

01.047.2 7 208 194

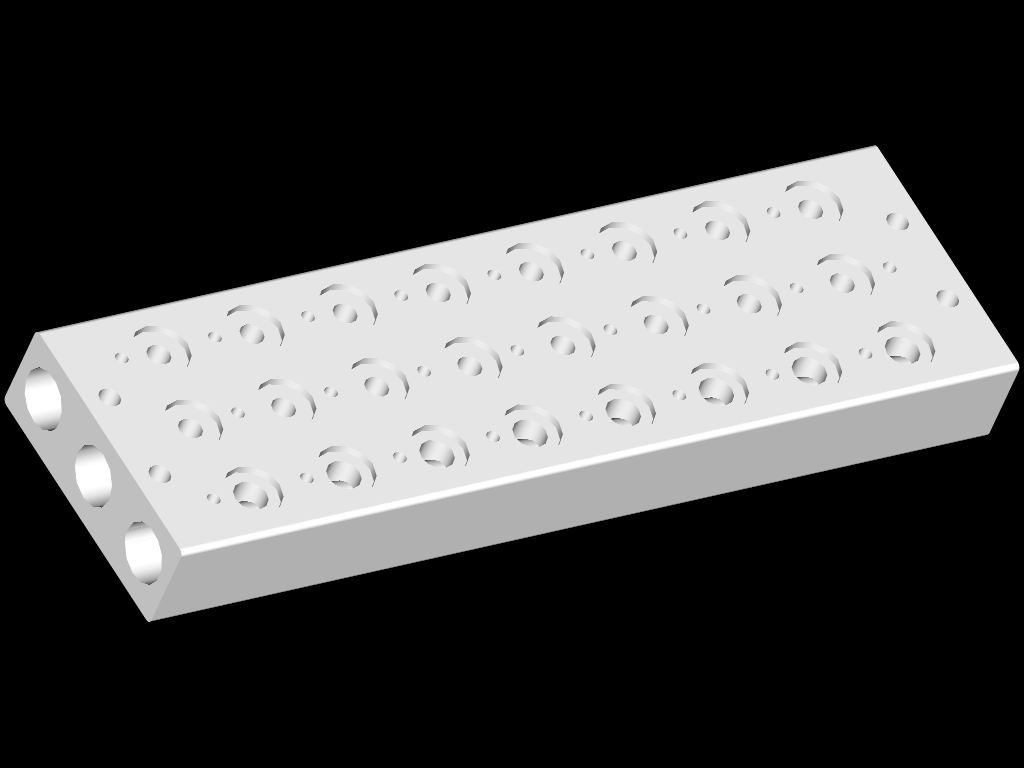

01.048.2 8 234 220







These manifolds can be used for the inistallation of 1/4" three and five way valves.
Each manifold is sold with all necessary pieces for installation.
Unused stations can be closed with a blanking plate.
Accessories are available to obtain a separate air inlet or exhaust for certain valves.
