Manifolds
 for 1/8" spool valves



posti fissi 1/8
































foto

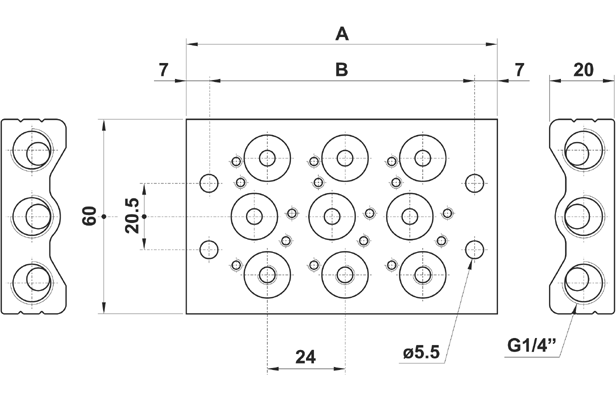

model no. stations A B

AUTOCAD ver 14. DWG

 JPG

ACIS - SAT

 STEP

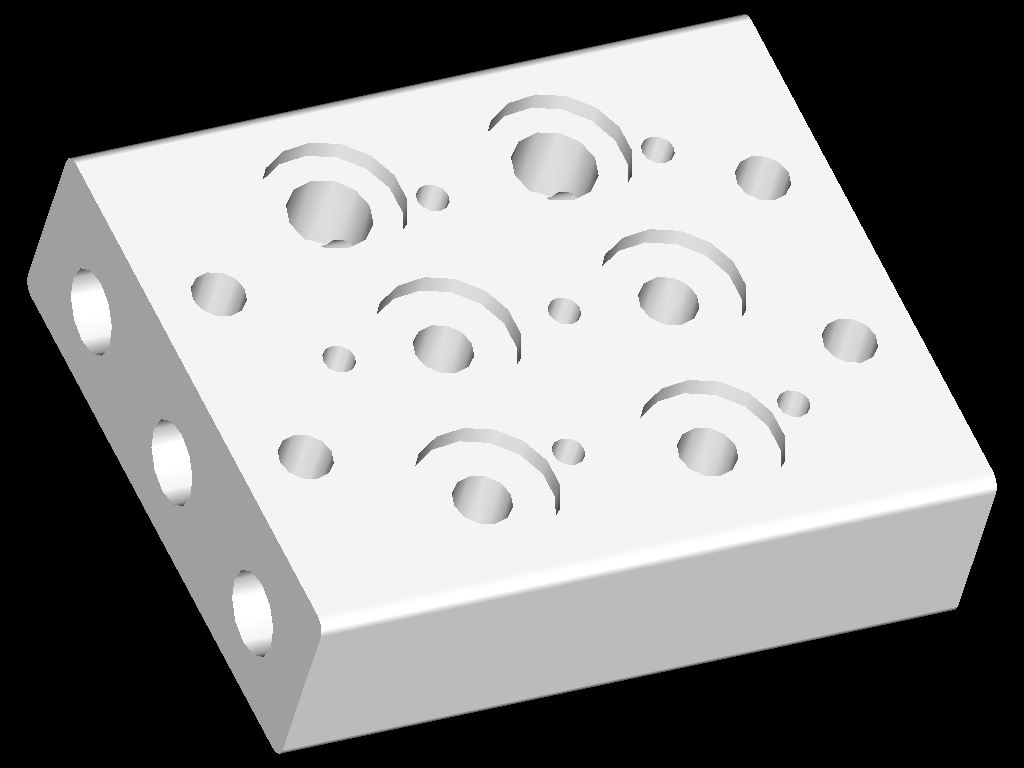

00.052.2

2

 72 58

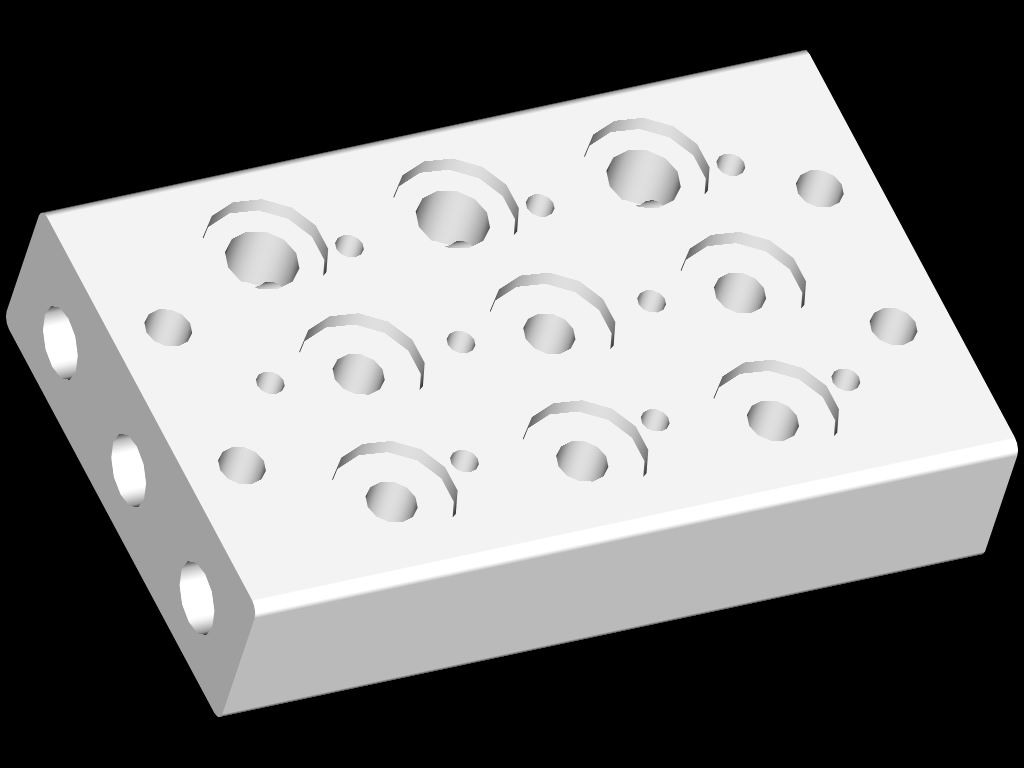

00.053.2 3 96 82

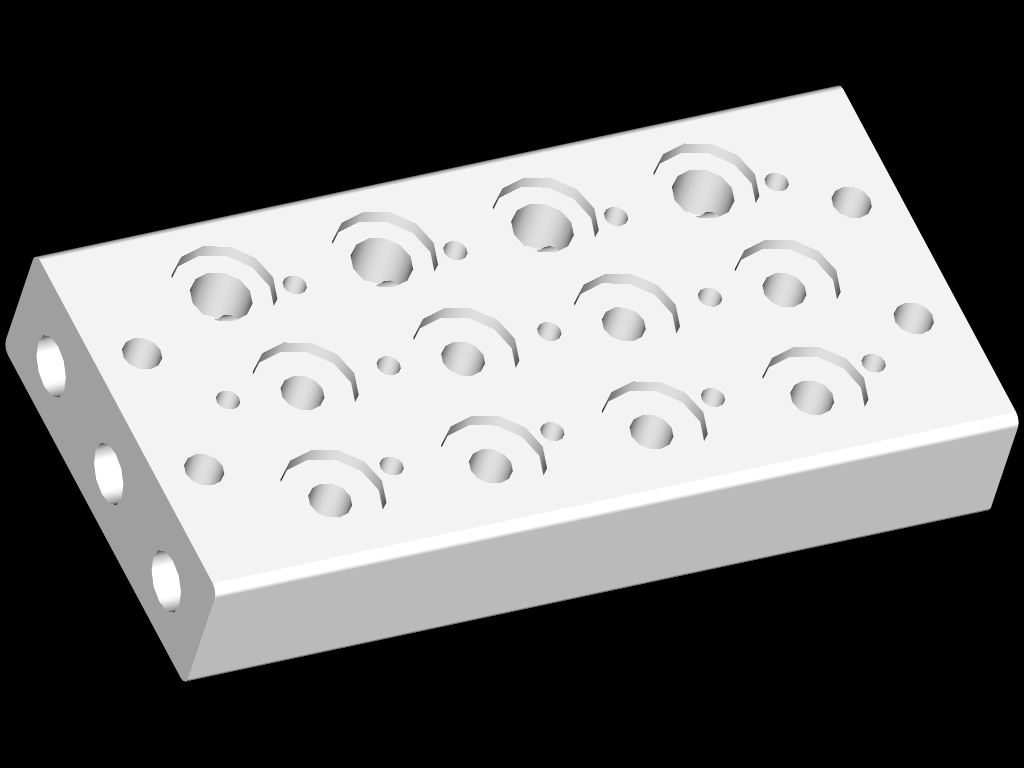

00.054.2 4 120 106

00.055.2 5 144 130

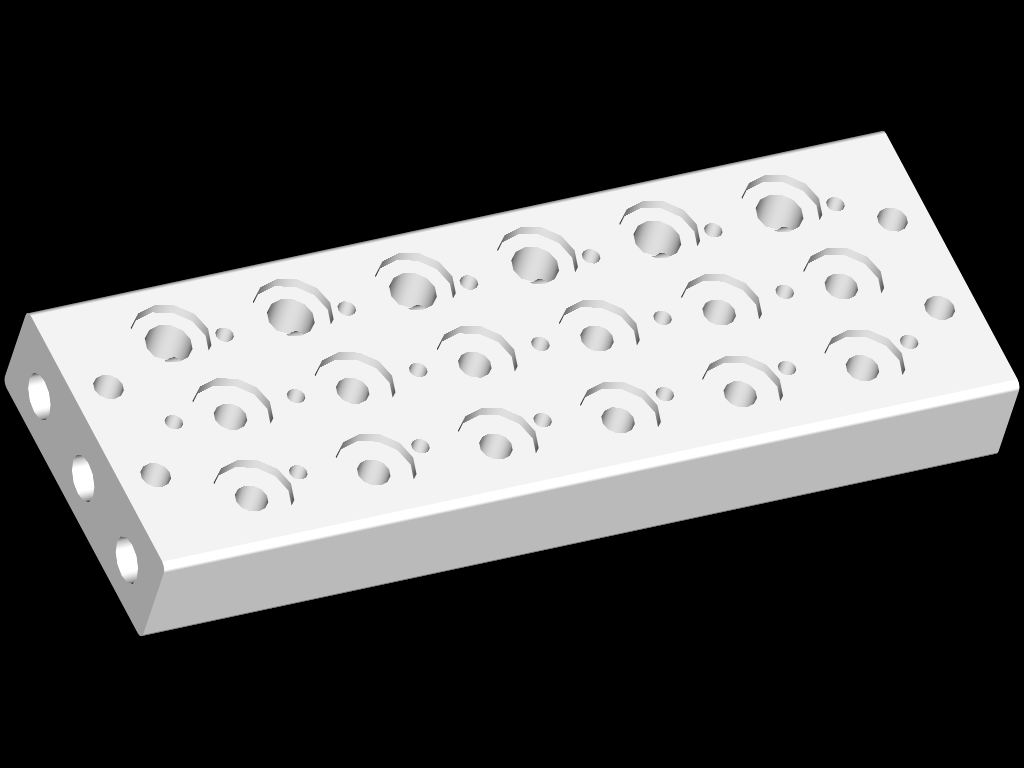

00.056.2 6 168 154

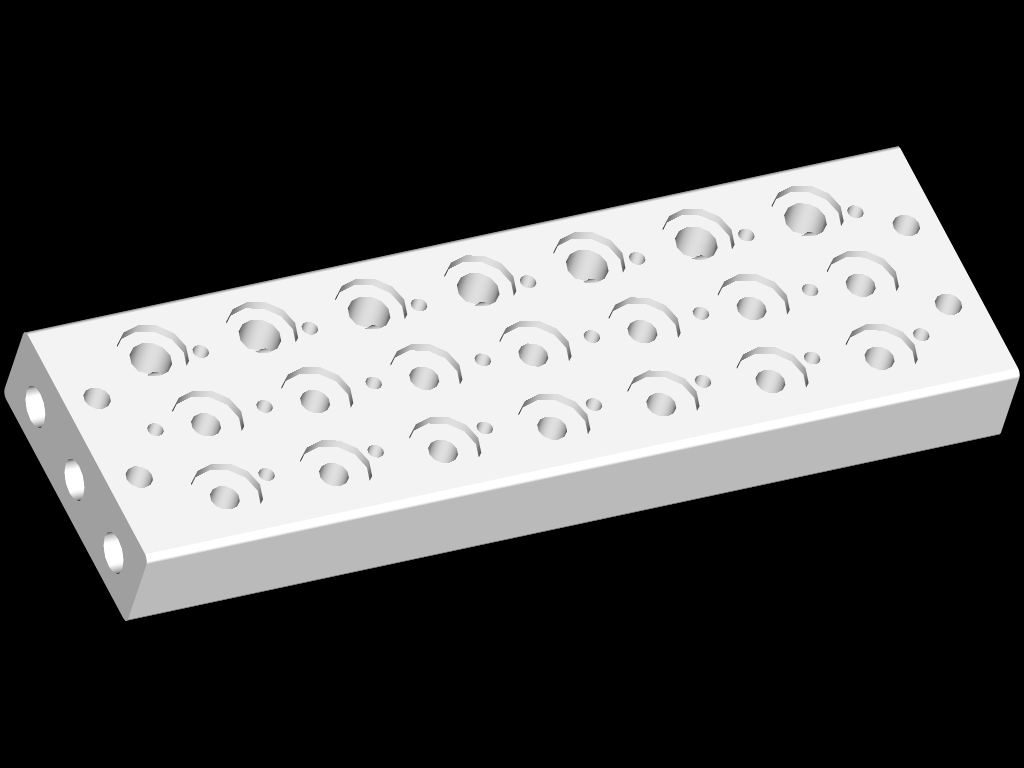

00.057.2 7 192 178

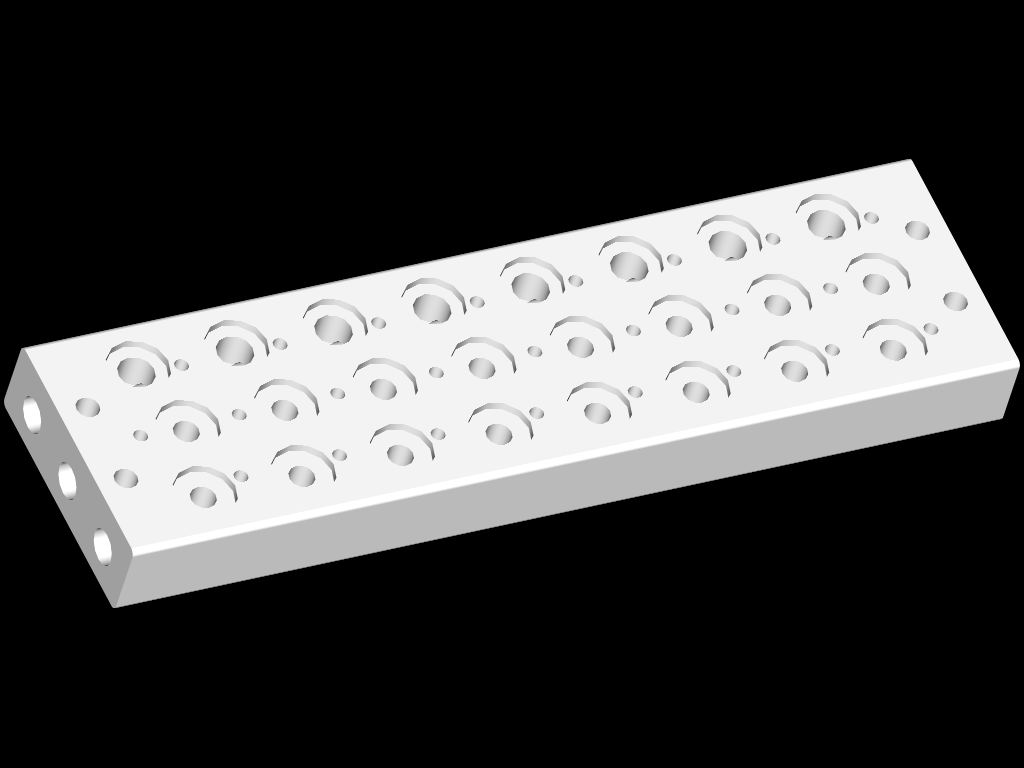

00.058.2 8 216 202

00.059.2 9 240 226

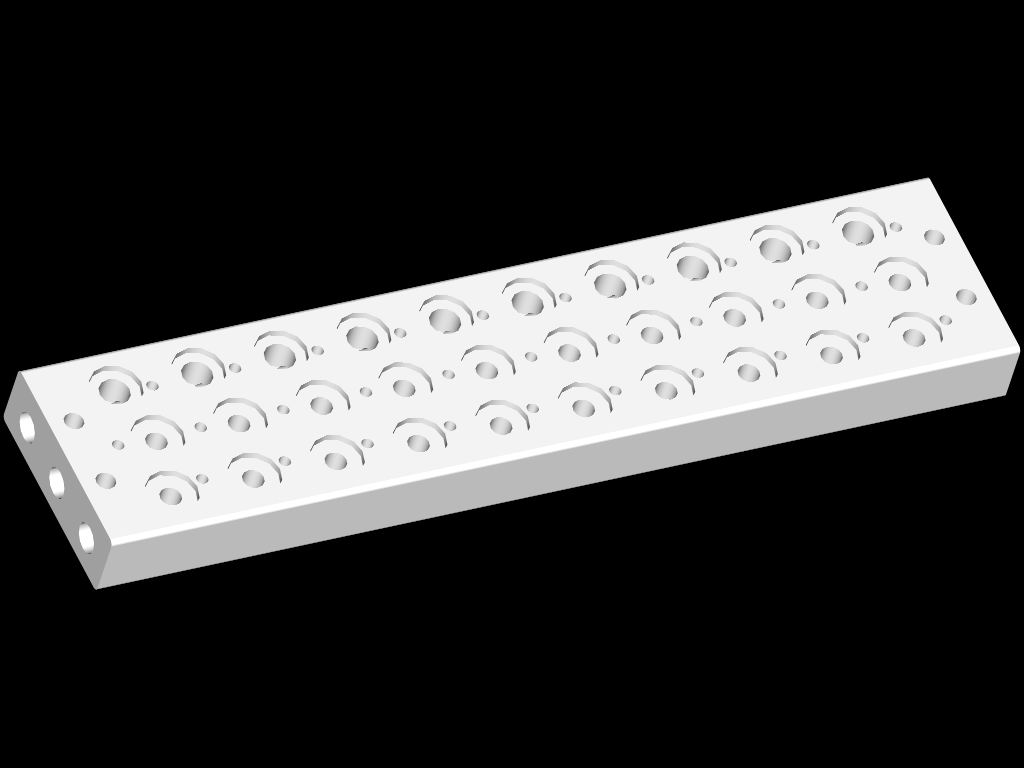

00.060.2 10 264 250

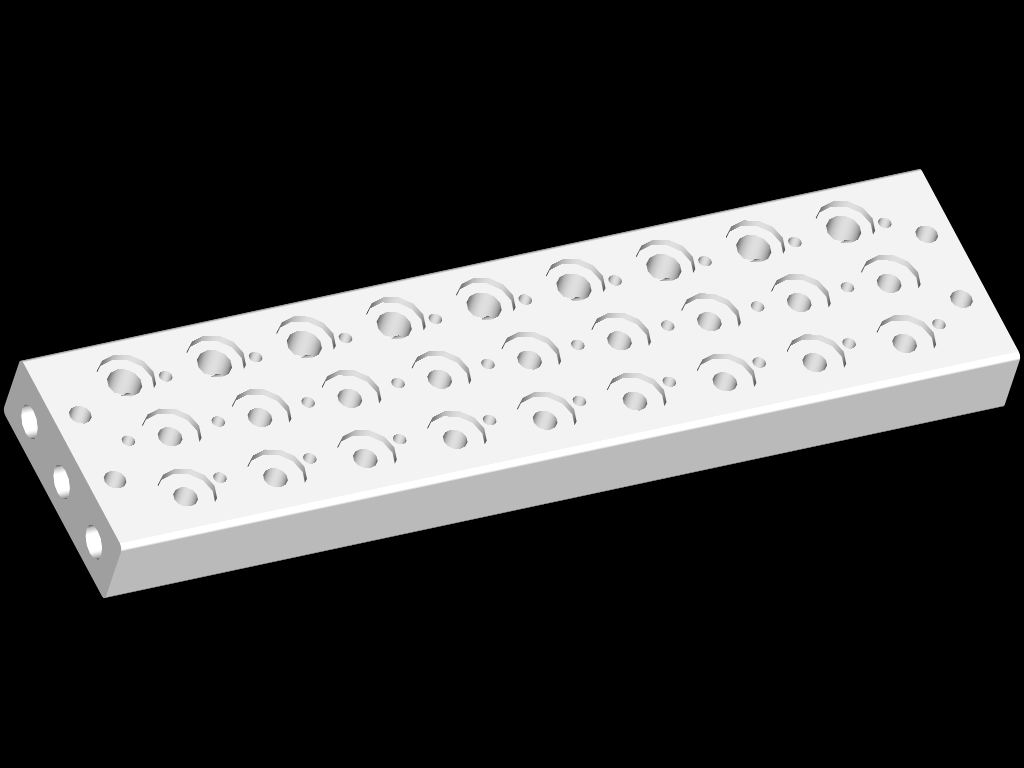

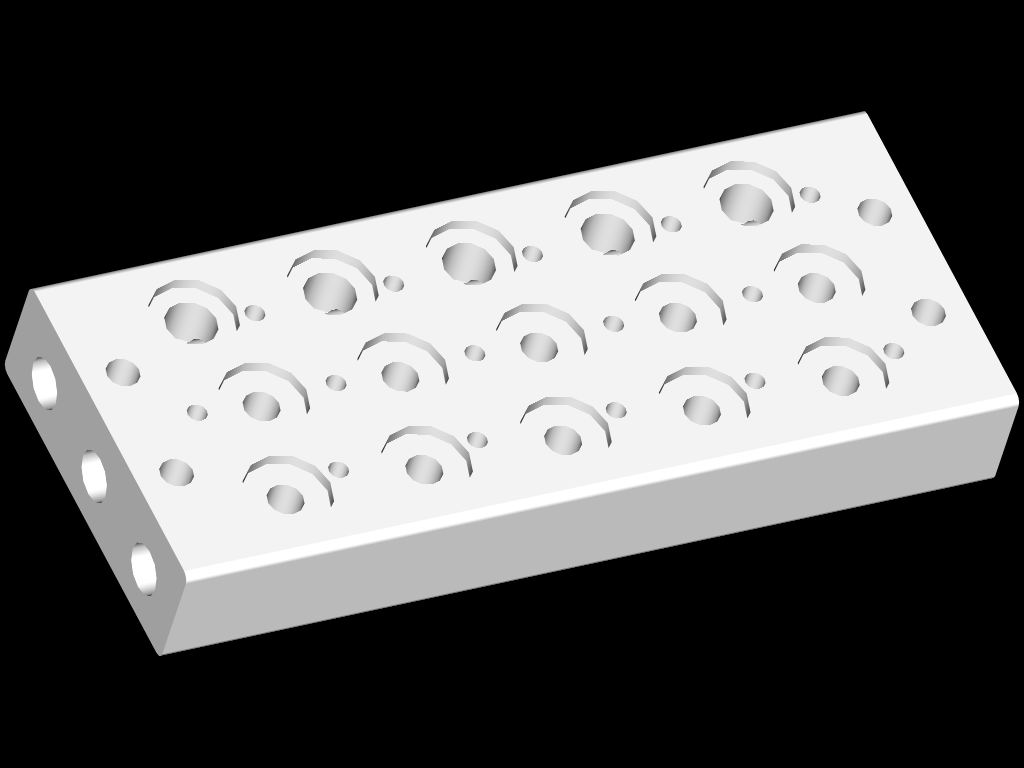

 These manifolds can be used for the inistallation of 1/8" three and five way valves.
Each manifold is sold with all necessary pieces for installation.
Unused stations can be closed with a blanking plate.
Accessories are available to obtain a separate air inlet or exhaust for certain valves.
