model	A					AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP

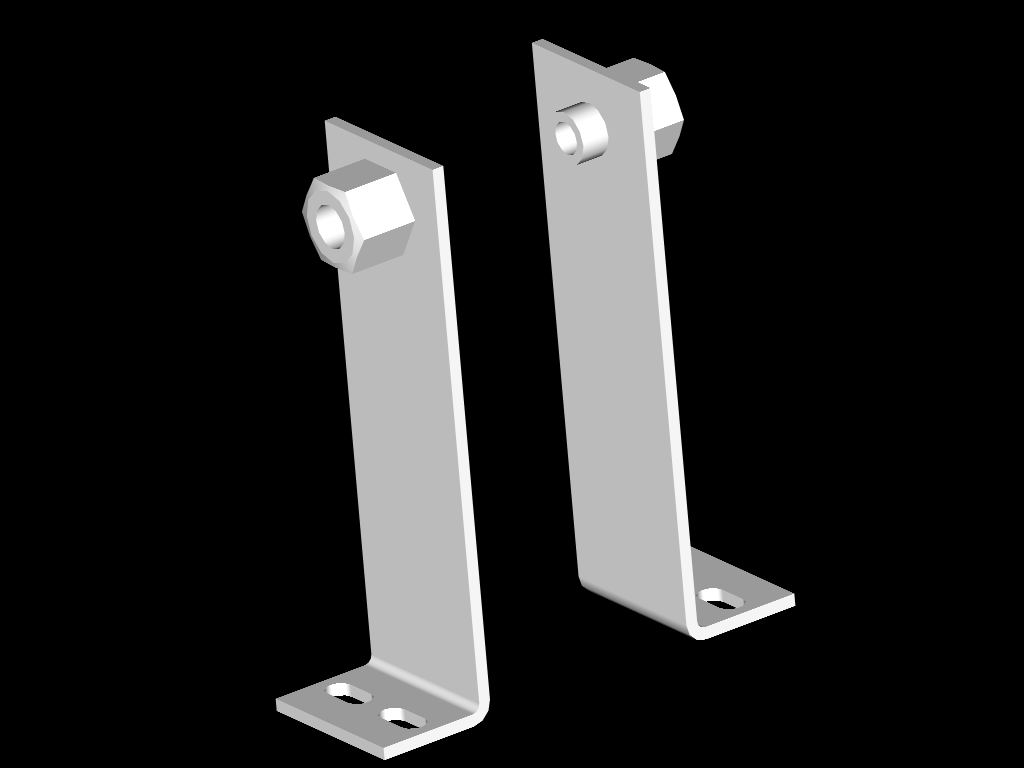

	1/8"	00.029.2	120
		00.067.2	60
	1/4"	01.029.2	120

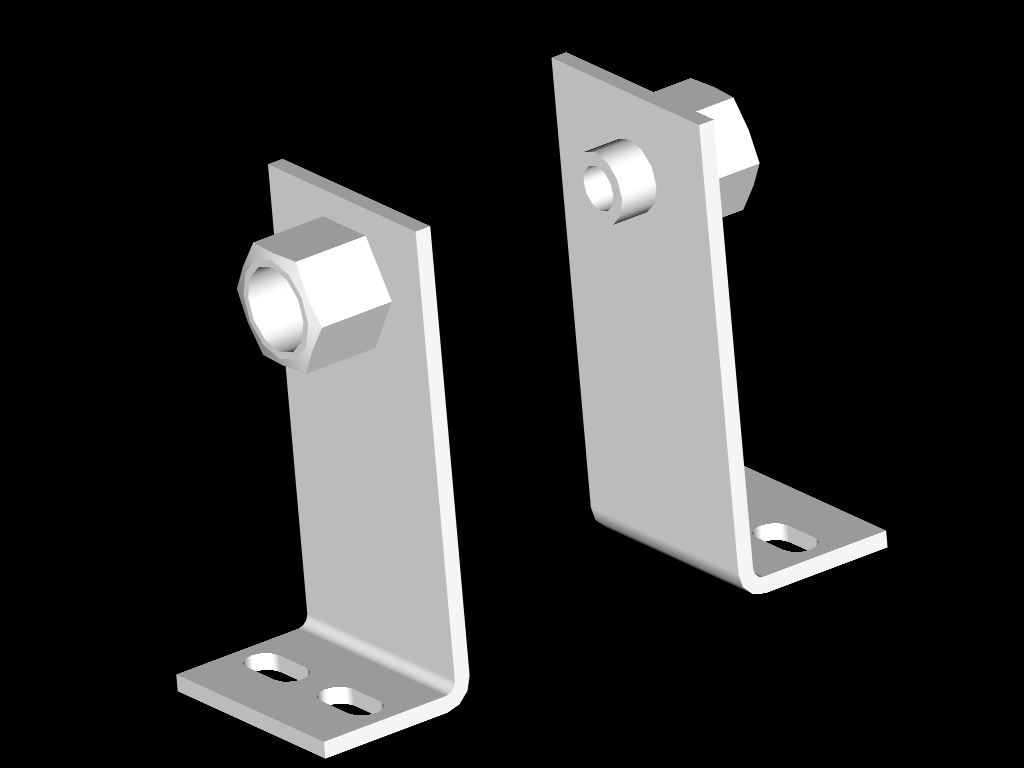

		01.038.2	60

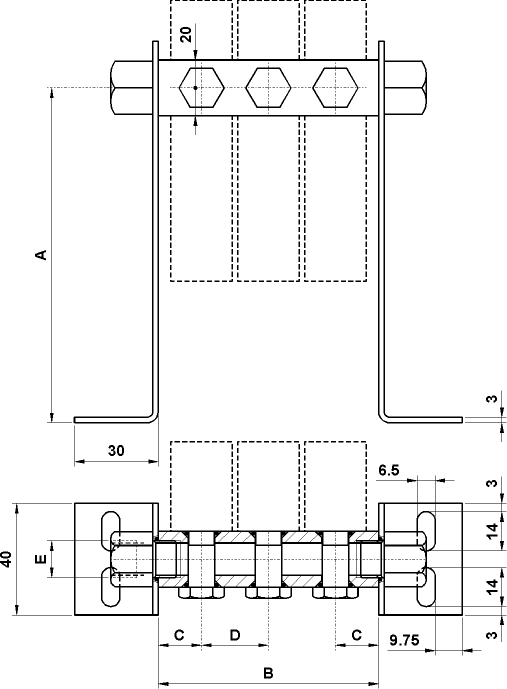

		model	no. stations	B	C	D	E	AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP

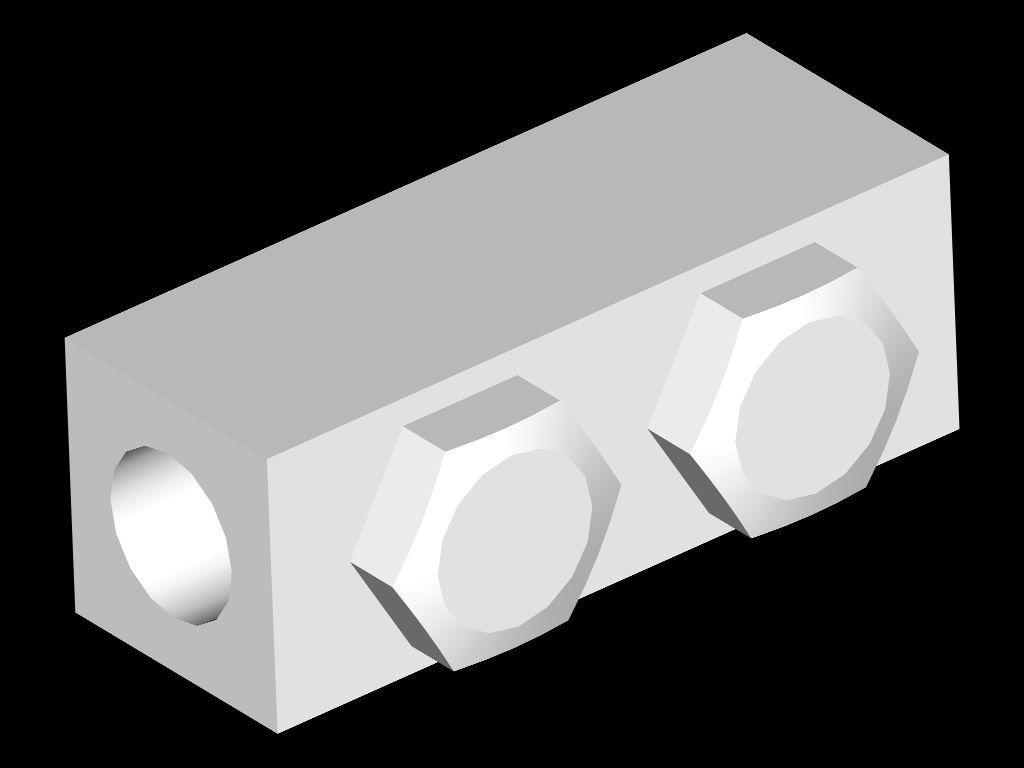

	1/8"	00.042.3	2	55	15.5	24	G1/4"

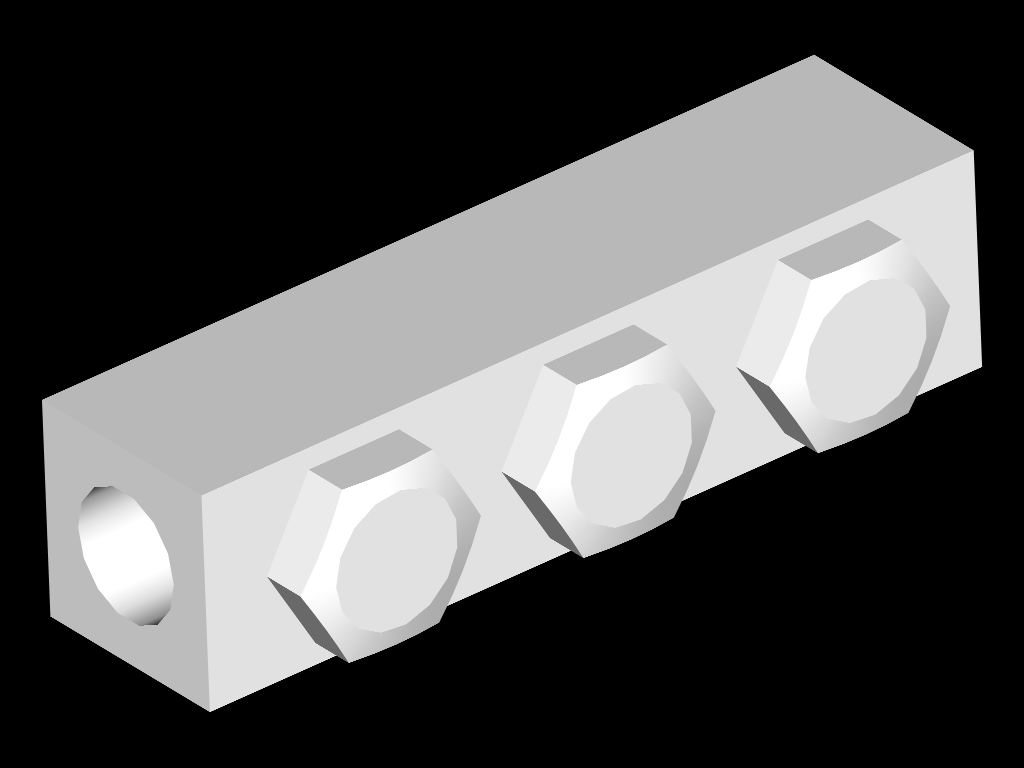

		00.043.3	3	79	15.5	24	G1/4"

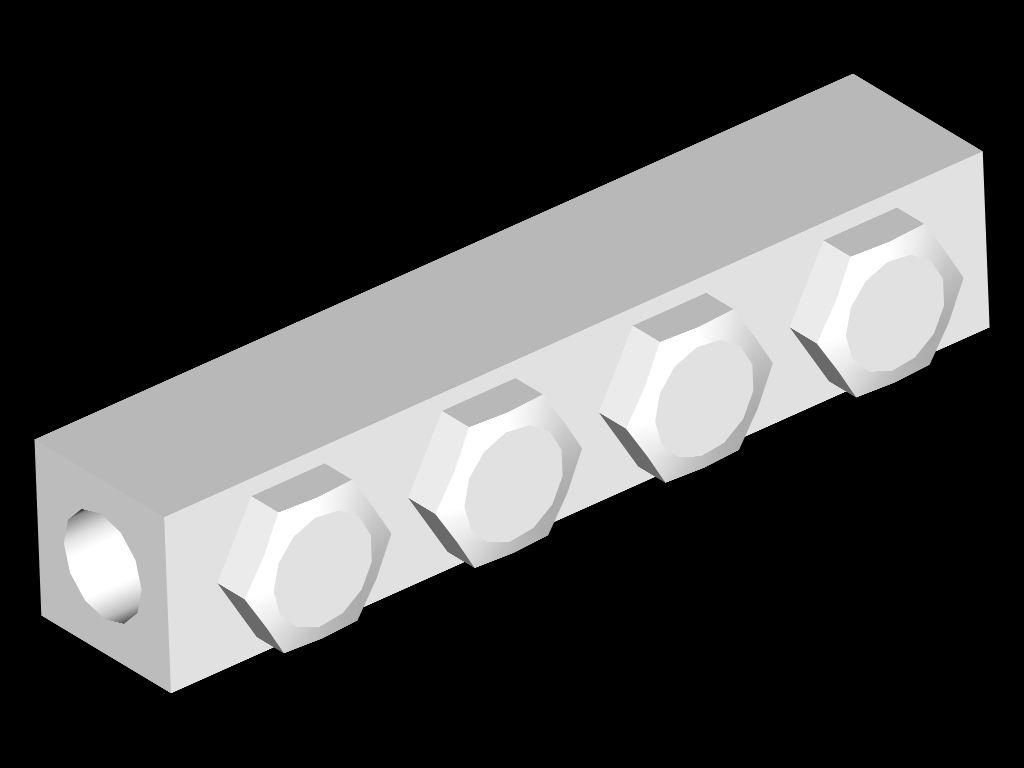

		00.044.3	4	103	15.5	24	G1/4"

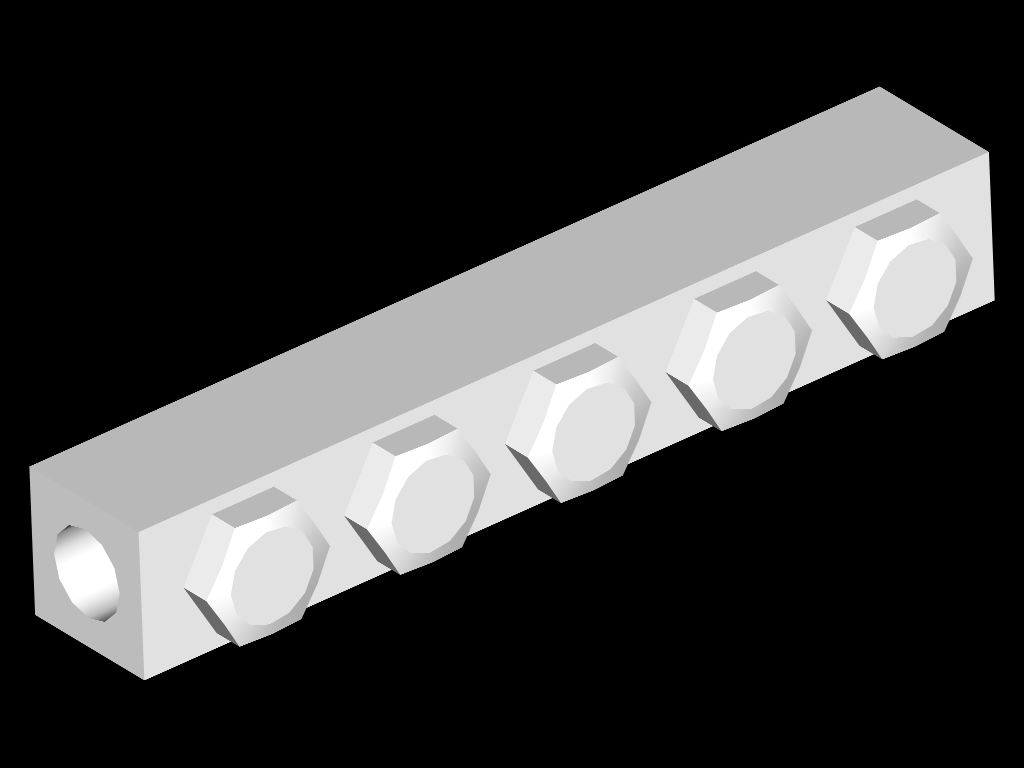

		00.045.3	5	127	15.5	24	G1/4"

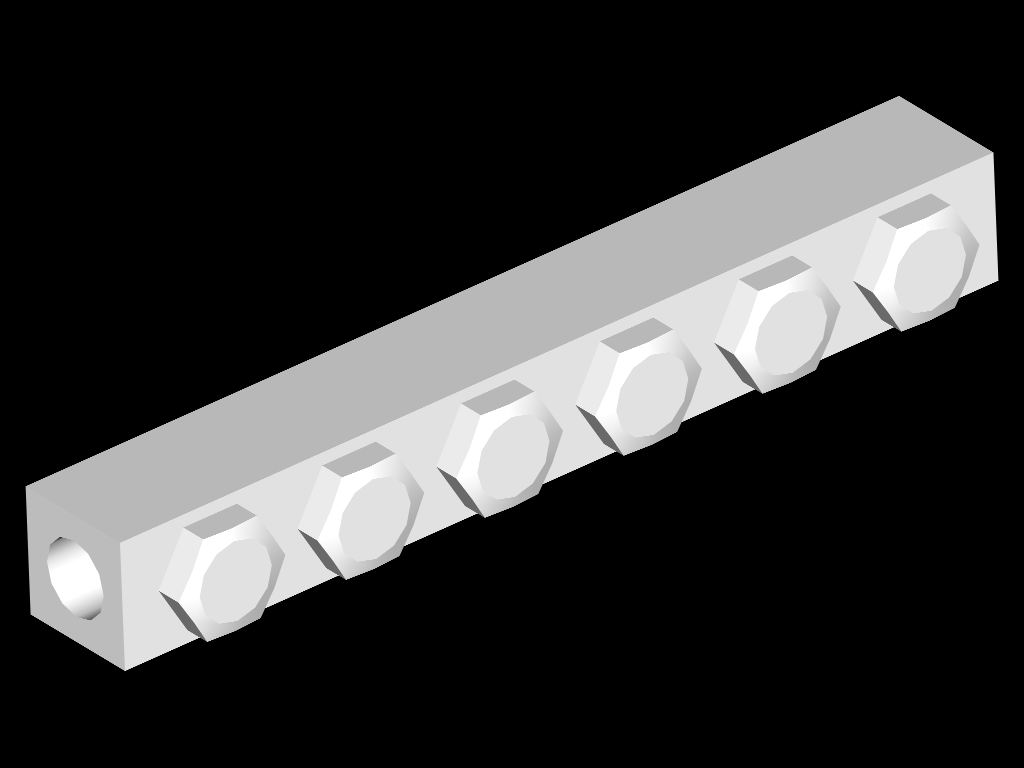

		00.046.3	6	151	15.5	24	G1/4"

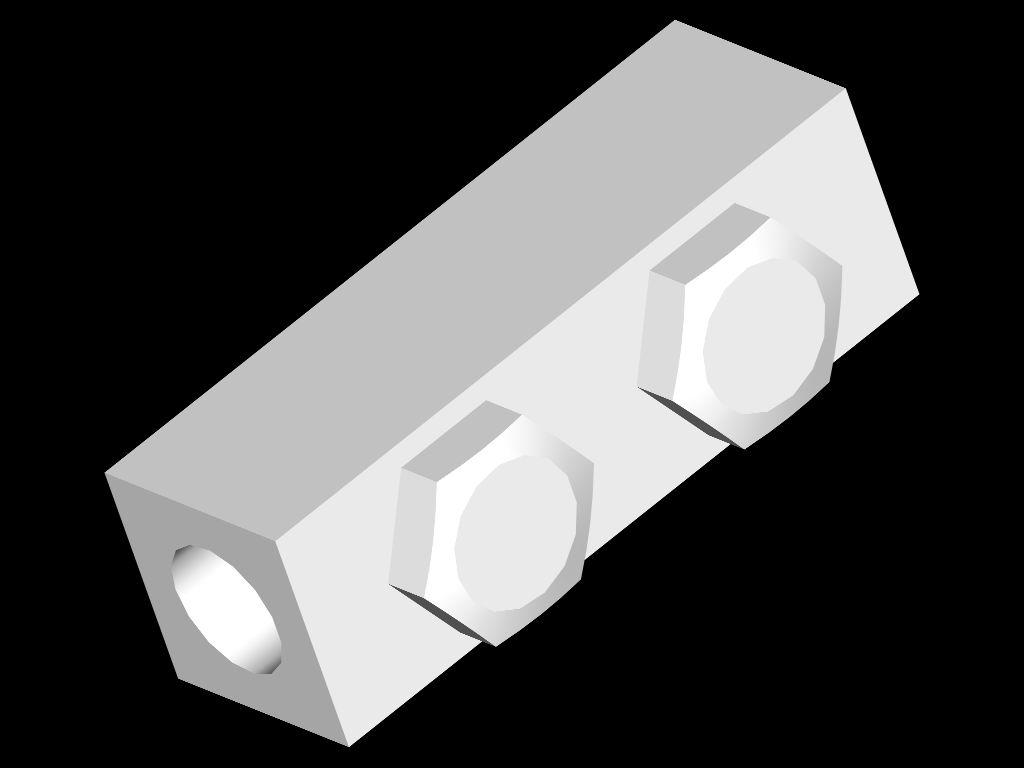

	1/4"	01.032.3	2	62	17.5	27	G3/8"

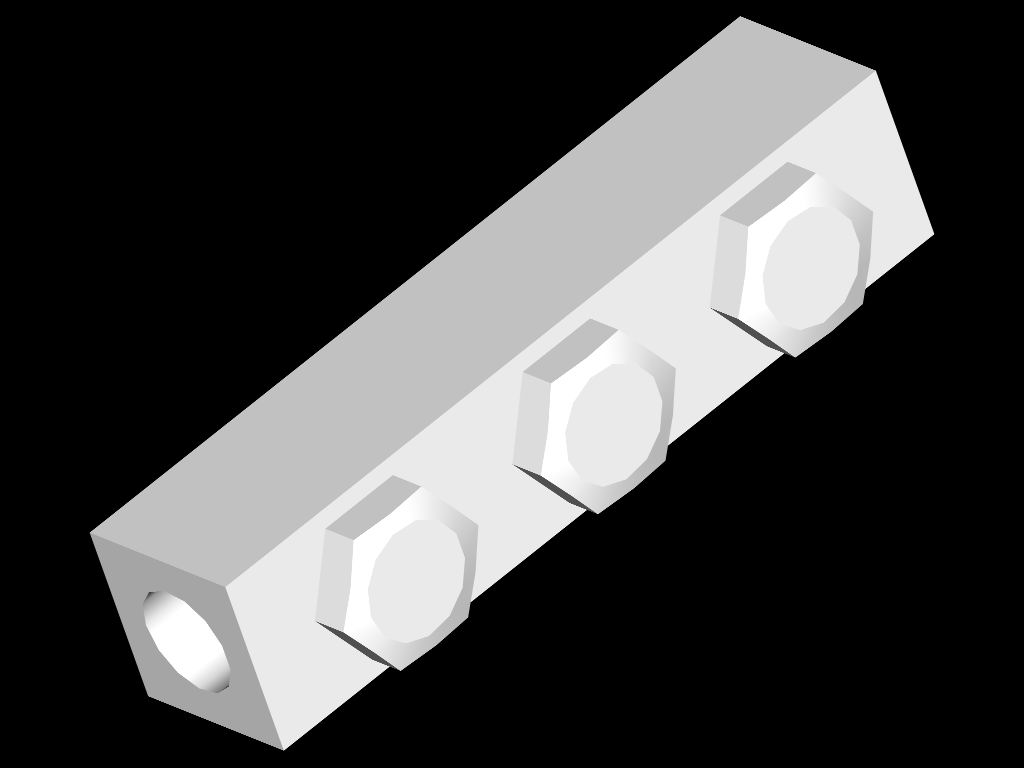

		01.033.3	3	89	17.5	27	G3/8"

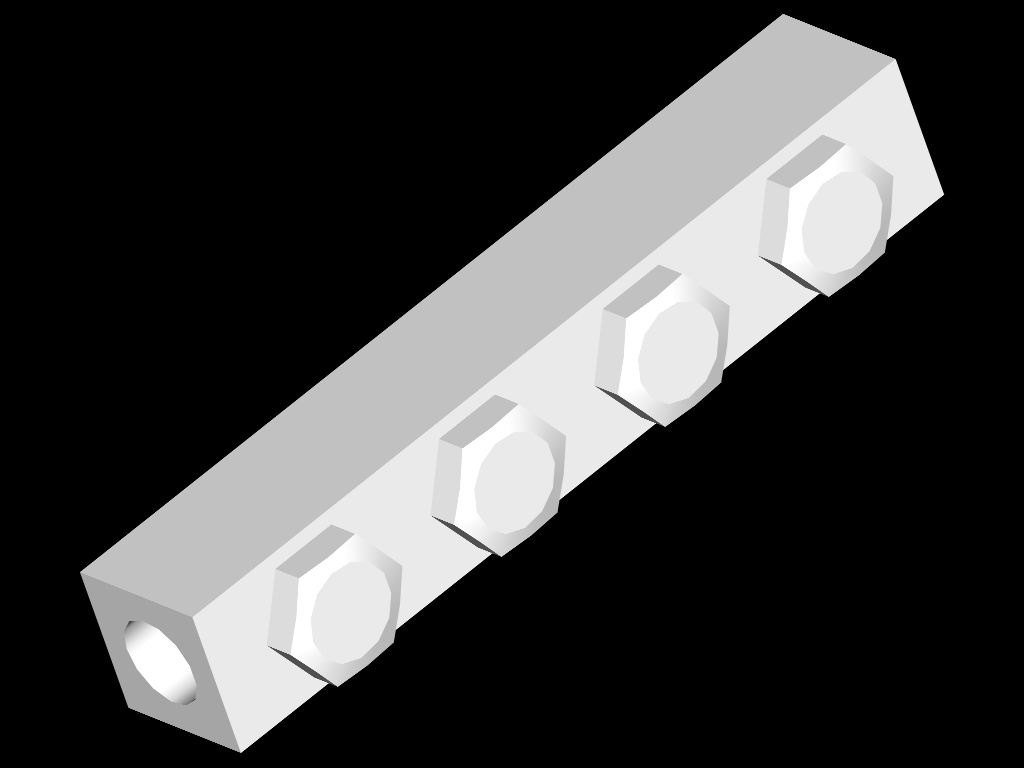

		01.034.3	4	116	17.5	27	G3/8"

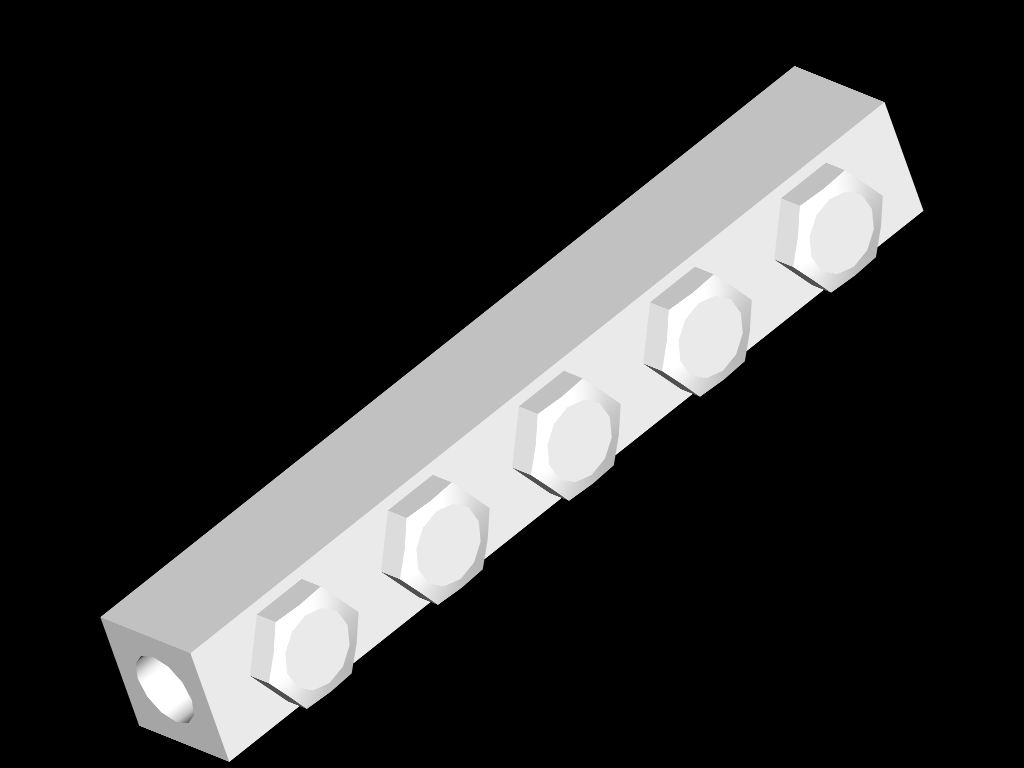

		01.035.3	5	143	17.5	27	G3/8"

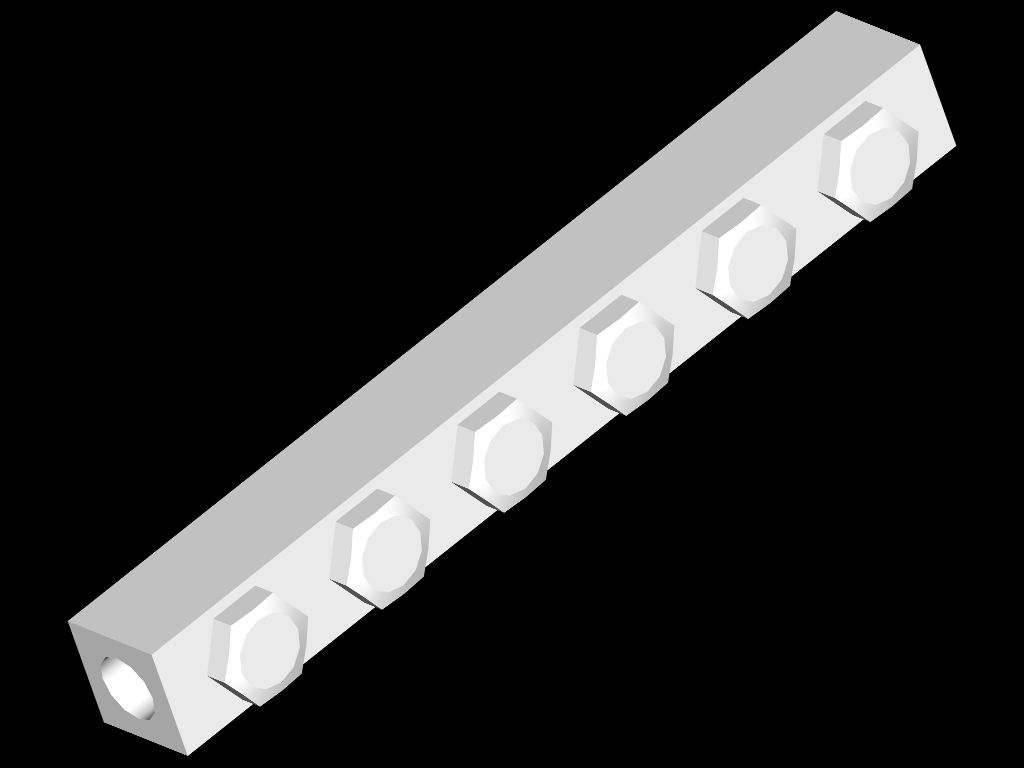

		01.036.3	6	170	17.5	27	G3/8"
