Pneumatically piloted
stop valves
with integrated RFU
10.013.4
| |
 |
10.014.4
| |
 |
Technical data

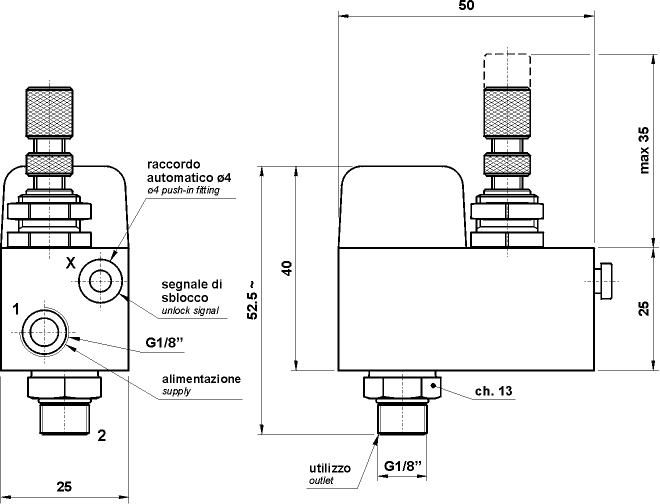

- Ports (supply and outlet): G1/8"
- Ports (unlock signal): push-in fittings for ø4 tube
- Temperature range: max +60°C
- Maximum flow rate at 6 bar: 250 Nl/min
- Working pressure: 2 ... 10 bar
- Fluid: 50µ filtered, lubricated or non lubricated air
Materials
- Body: aluminium 11S
- Upper body: DELRIN
- Seals: NBR
- Springs: stainless steel
- Internal parts: brass OT58
