TECHNICAL DATA
Pedal valves

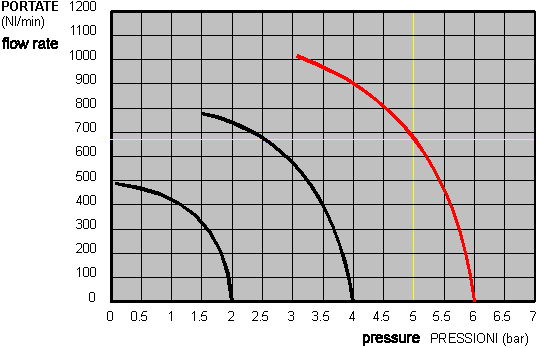

Flow rates
Nominal orifice
7.5 mm
Temperature range
max +60°C
Working pressure
2 ... 10 bar
Ports
G1/4"
Fluid
50µ filtered, lubricated or non lubricated air
Materials
Body: aluminium 11S
Spool: nickel plated aluminium
Seals: NBR
Springs: stainless steel
Internal parts: brass OT 58
Protection cover: shock resistant plastic material
